Sheet metal fabrication is a metal manufacturing process based on cold-forming technology, specifically designed for processing thin metal sheets less than 6mm thick. Its core feature is to shape flat metals into high-precision, lightweight, and multi-functional components through steps such as shearing, punching, bending, riveting, and welding. Since the material thickness remains consistent during the processing, the finished products exhibit significant advantages in terms of strength, electrical conductivity, and the economy of mass production. The following is an in-depth analysis of sheet metal fabrication, covering its process characteristics, standard workflows, and industry applications.

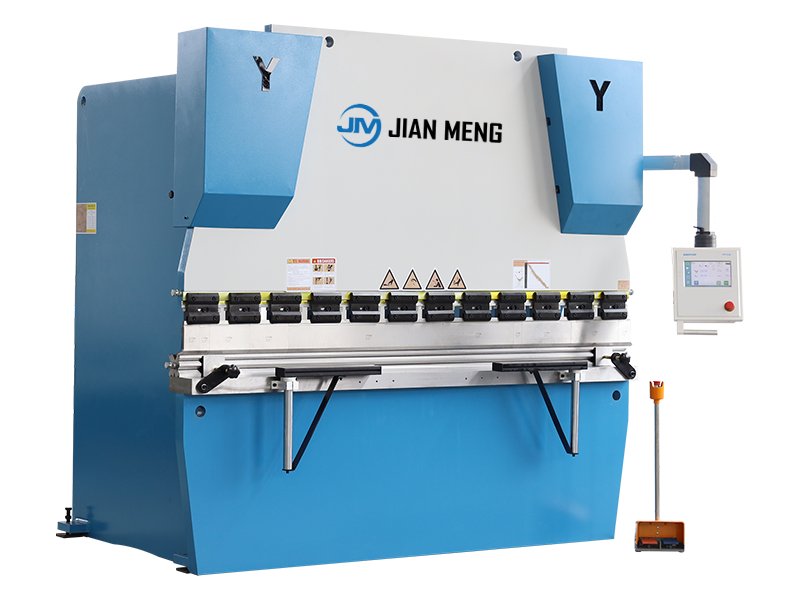

Press Brake tools

I. Core Processes of Sheet Metal Fabrication

1. Combination of Cold-Forming Technologies

Sheet metal fabrication integrates cold processing technologies such as shearing, punching, cutting, compounding, bending, and riveting. The whole process does not require high-temperature casting, ensuring the stability of material properties. High-precision equipment such as laser cutting and plasma cutting can handle complex patterns, while CNC bending machines can achieve angle forming with millimeter-level precision.

2. Characteristics of Standardized Production

From automotive body parts to electronic device casings, sheet metal parts must meet strict dimensional specifications. The entire process uses digital design and automated equipment, supporting large-scale and rapid mass production while reducing the cost per unit.



II. Analysis of the Complete Workflow

1. Design and Material Selection

Materials such as galvanized steel, stainless steel, and aluminum alloy are selected according to product requirements, and 3D modeling is completed through CAD software. The design scheme needs to balance function realization and process feasibility to reduce the cost of subsequent mold modification.

2. Processing Stage

 - Cutting: Use shearing machines, laser cutters, or water jet equipment to complete the processing of basic shapes.

 - Forming: Shape the angle of the sheet through bending machines or stamping dies.

 - Connection: Assemble the components by welding, riveting, or bolt fastening.

3. Surface Treatment and Quality Inspection

Processes such as spraying and electroplating enhance corrosion resistance. Tools such as coordinate measuring machines and hardness testers are used for finished product inspection to ensure compliance with industry standards.



III. Core Advantages and Industry Applications

1. Solutions for Multi-Field Penetration

 - Automotive Manufacturing: Body structural parts such as doors and engine hoods.

 - Medical Equipment: Surgical instrument trays and CT machine protective casings.

 - Industrial Equipment: Power distribution cabinets and automated production line frames.

 - Consumer Electronics: Mobile phone middle frames and server chassis.

2. Balance between Cost-Effectiveness and Performance

The lightweight design reduces transportation energy consumption, the high-strength characteristics ensure product durability, and the structural design with uniform thickness simplifies the assembly process, especially suitable for industrial products that require frequent iteration and upgrading.



IV. Technological Development and Future Trends

With the penetration of intelligent manufacturing technologies, sheet metal fabrication is accelerating the transformation towards flexible production lines. AI-driven process simulation systems can predict the springback amount of material bending in advance, and the integration of 5G communication modules makes it possible to remotely monitor production parameters. The popularization of the green manufacturing concept also promotes the research, development, and application of renewable materials and water-based surface treatment processes.



From precision medical devices to spacecraft components, sheet metal fabrication continuously empowers modern manufacturing with its flexibility and reliability. By optimizing process chain management, enterprises can not only shorten the product launch cycle but also achieve the strategic goal of cost reduction and efficiency improvement in the highly competitive market.
