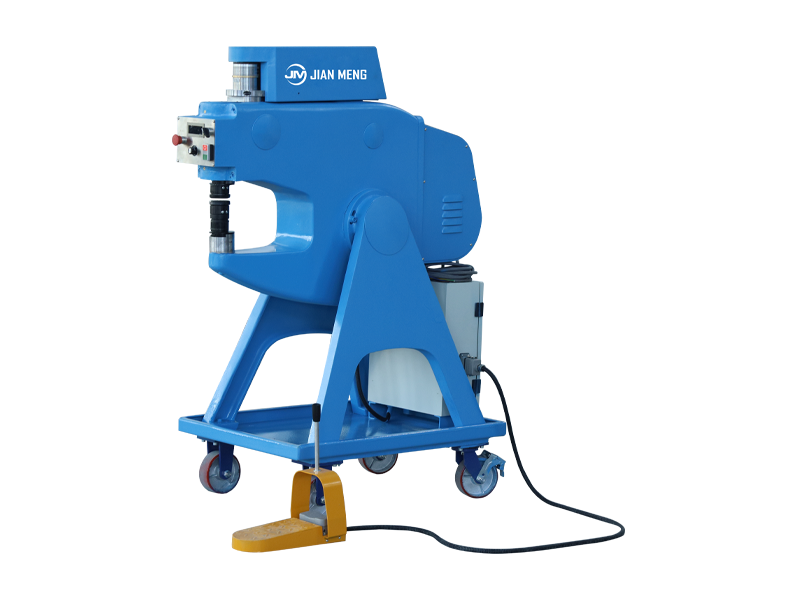

The Jianmeng PF350 power forming machine is a multifunctional power hammer designed specifically for sheet metal cold forming - stretching & shrinking.
Watch VideoVideo demonstration
Product details
|
|
 |

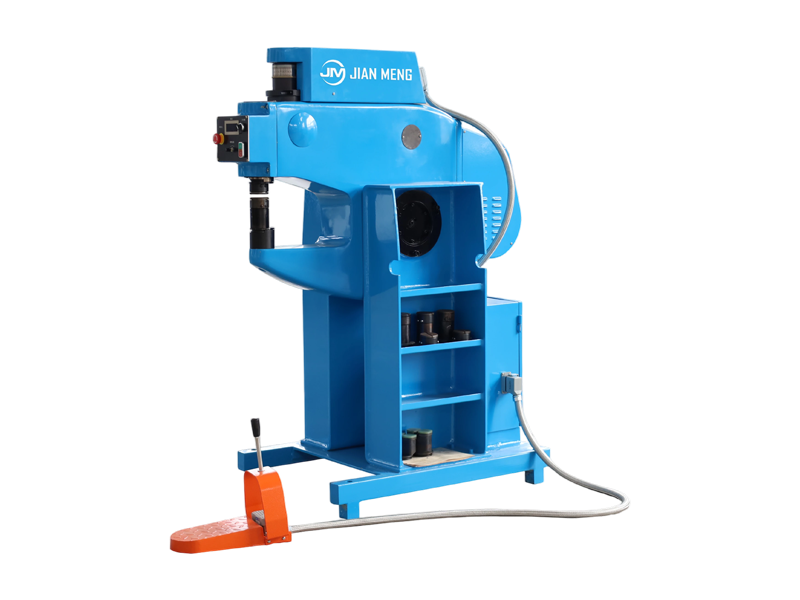

The JIANMENG PF350 power forming machine is suitable for chipless processes, including various forming operations such as stretching, shrinking, curved surface forming, doming, flanging, and flattening.
As a compact cold forming equipment for sheet metal, it occupies a small space, making it very suitable for use in maintenance workshops or application environments that require mobile operations.
The equipment operates with low noise and vibration, making it especially ideal for flexible processing needs involving multiple varieties and small batches, offering exceptional versatility and efficiency.

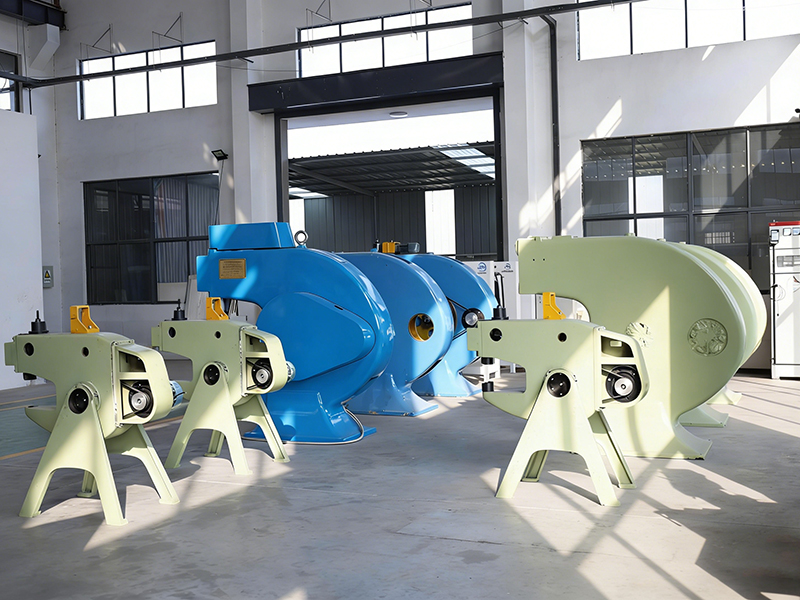

Cast Machine Frame
• Enhances structural integrity and operational efficiency
• Enables compact integration of functional modules
• Delivers consistent mechanical properties and stable accuracy
• Optimizes strength-to-weight ratio to reduce overall mass

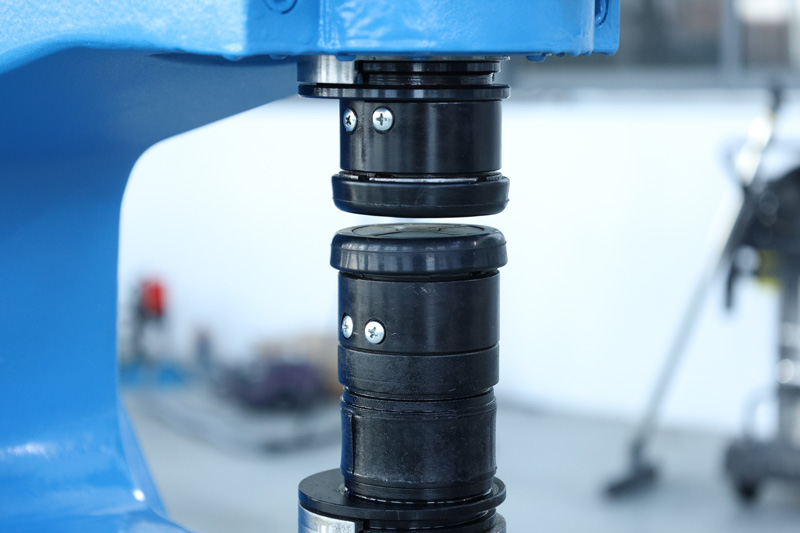

Fast Tools-Change Design
• Swap tools in seconds
• Less downtime, lower labor cost
• Ready for multi-process production

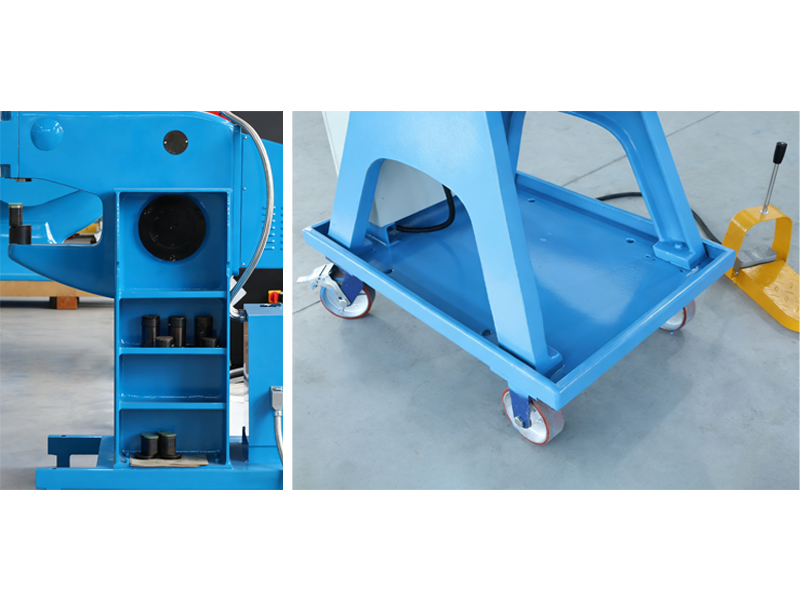

Machine support structure

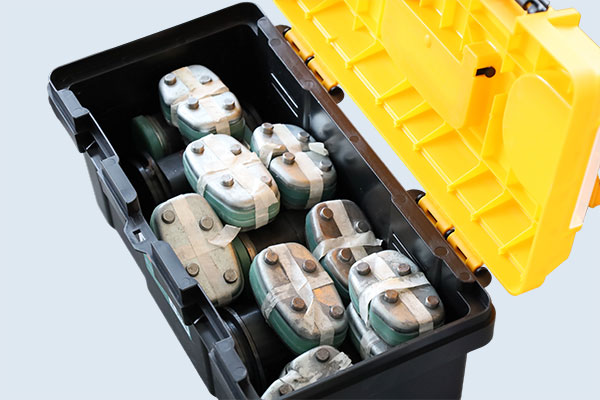

Optional oversized cabinet stores dies and spares for faster changeovers. Swivel casters enable quick relocation and locking; the caster area doubles as temporary storage for on-site tooling swaps.
Technical Specifications of Curved Surface Forming Machine
| Item | Value | Item | Value |
| Steel (Rm tensile strength = 400 N/mm²) | 2.0 mm | Aluminum (Rm tensile strength = 250 N/mm²) | 2.5 mm |
| Copper (Rm tensile strength = 250 N/mm²) | 2.0 mm | Stainless steel (Rm tensile strength = 600 N/mm²) | 1.5 mm |
| Horizontal throat opening | 350 mm | Vertical throat opening | 188 mm |
| Work schedule | 8 mm | Work schedule per minute | 0 - 400 times/minute |
| Rated power | 1.5 kw | Adjustment amount of punch | 80 mm |
| Pass | Asynchronous motor | Drive | Electric |
| Stroke frequency | Continuous stroke | Net weight | 600 kg |
| Length | 1400 mm | Width | 720 mm |
| Height | 1800 mm |
Forming technology
JianMeng technology means accurate and chip free cold forming of metal sheets and profiles with low noise.
The same machine can be used for bending curved metal components, forming metal sheets, manufacturing new parts, as well as repairing and precisely correcting components.
Equipped with various forming tooling, these tools can be installed and replaced within seconds to adapt to the machine's tasks.

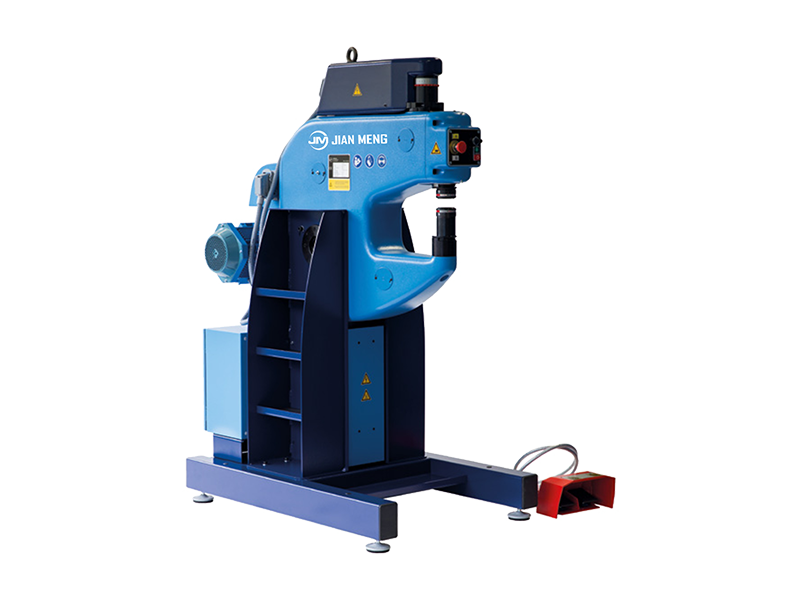

The Jian Meng PF665 metal shaping machine is built to be robust and durable, capable of delivering tremendous pressure while offering highly responsive control.
The product's versatility stems from its wide range of shaping tooling, which is easy to change, ensuring optimal machine utilization.

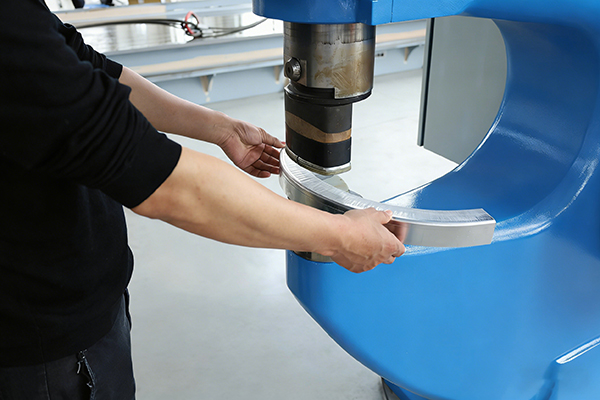

Shrinking

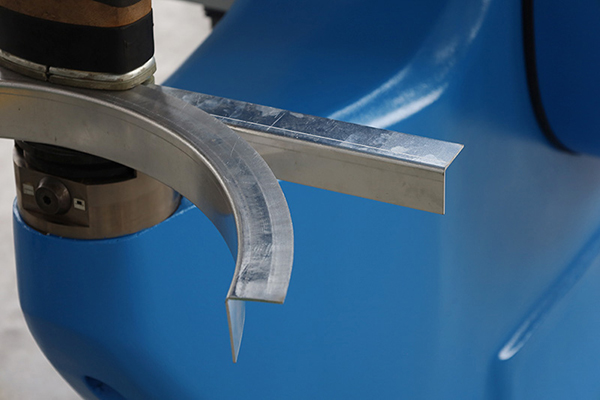

Shrinking sheet metal and profile sections

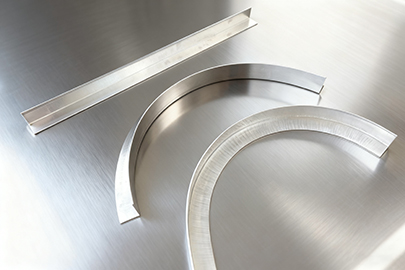

Varying degrees of shrinking effects
Stretching

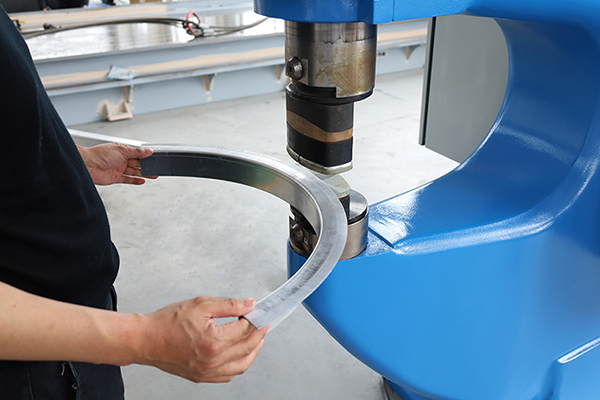

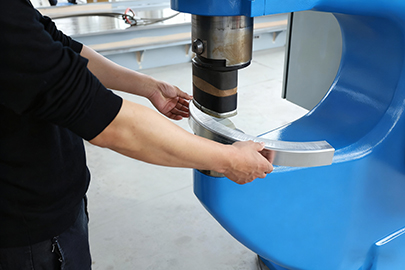

Stretching sheet metal and profile sections
Varying degrees of stretching effects

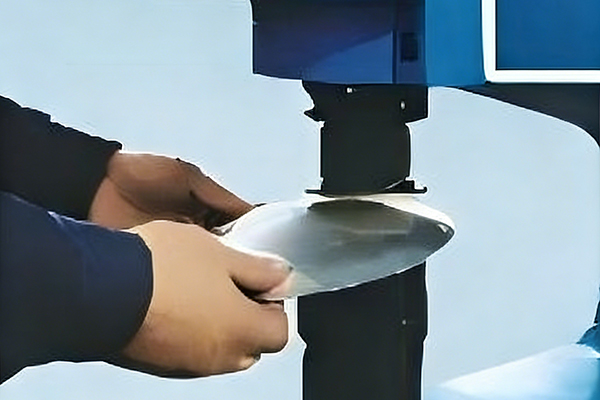

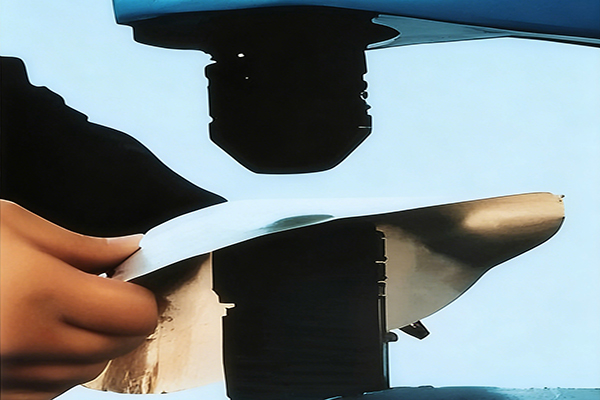

Doming
Doming sheet metal

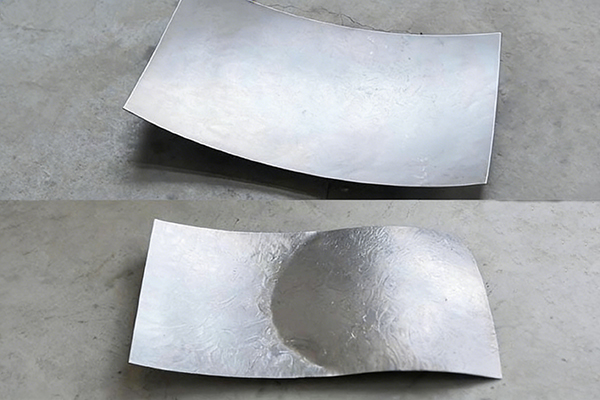

Doming effect of sheet metal
Planishing
Planishing preformed or flat sheet blanks

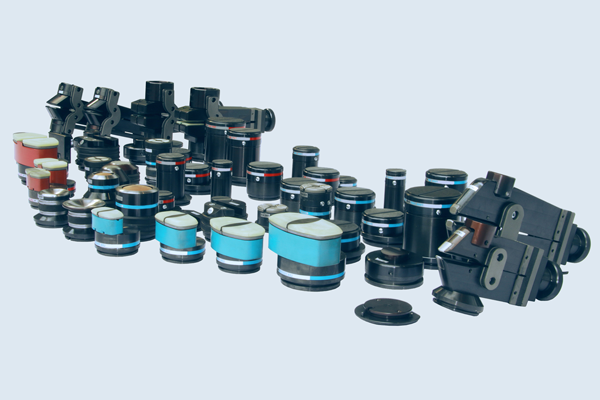

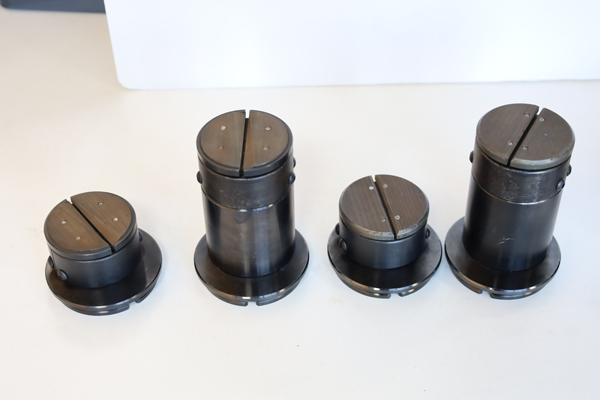

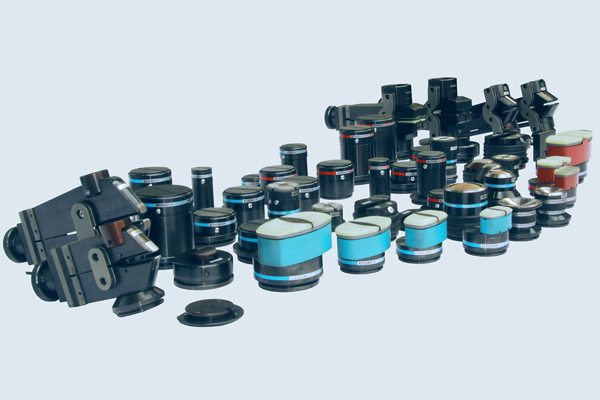

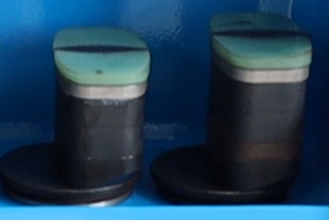

Kraftformer tools

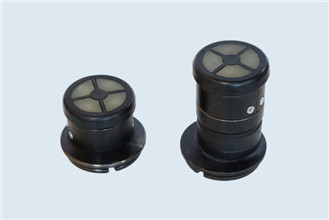

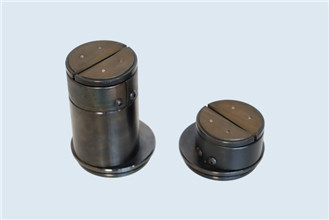

Shrinking for aluminum (2.5mm)
Stretching for aluminum (2.5mm)

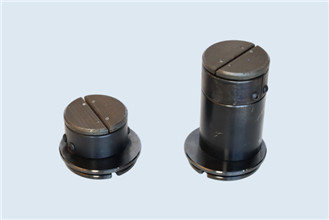

Shrinking for steel (2mm)
Stretching for steel (2mm)
Planishing for steel (2mm)
Application Field of Universal Profile Forming Machine
Automotive manufacturing and repair
Classic car restoration
Aircraft maintenance
Aircraft skins
Model manufacturing and prototype development
Metal craft and fabrication
Metal sculpture
Metal art
Teaching and technical training
Sample production of elevator door panels and kitchen and bathroom equipment
Small hardware manufacturers and repair stations
Aerospace
