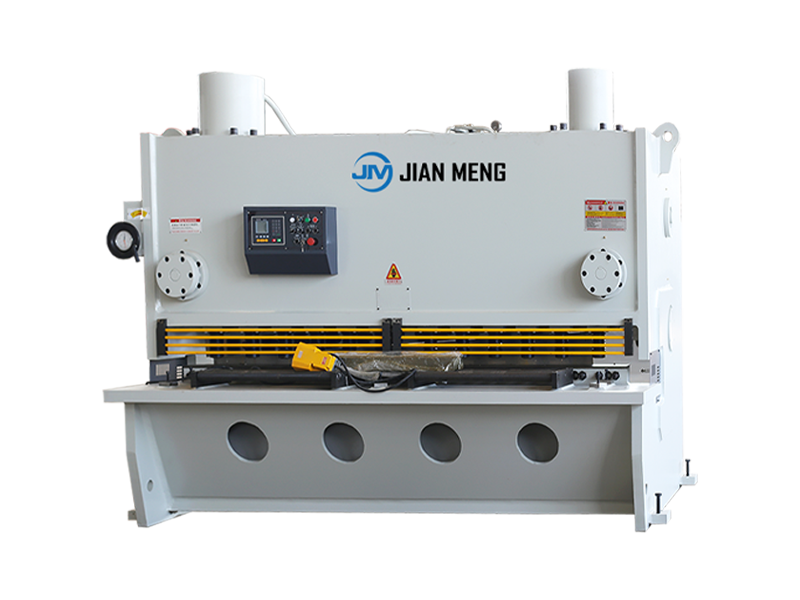

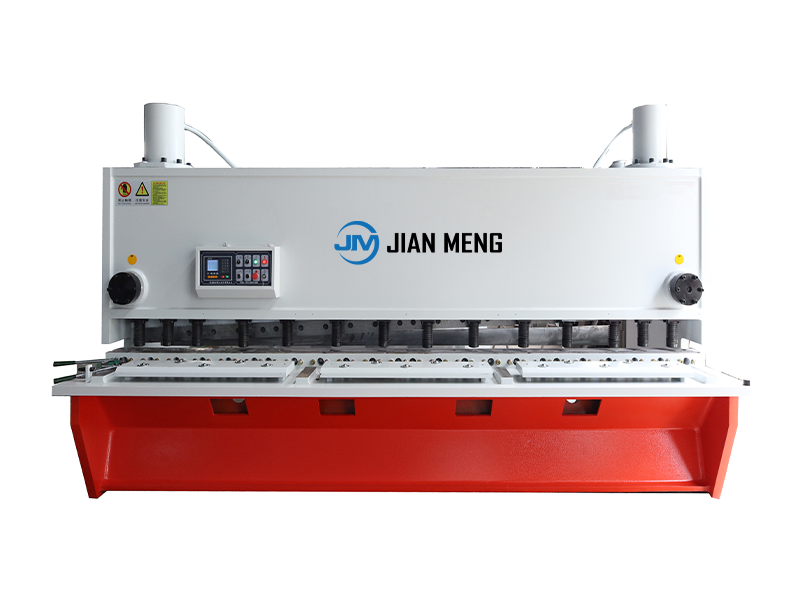

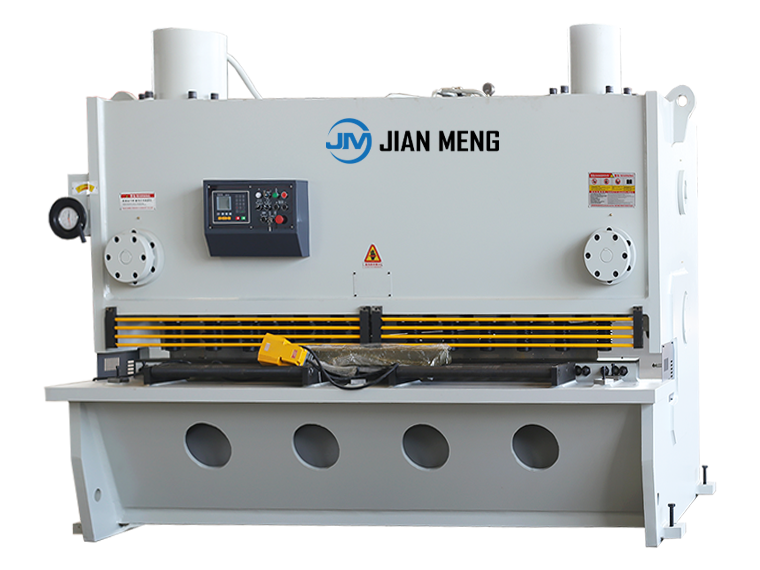

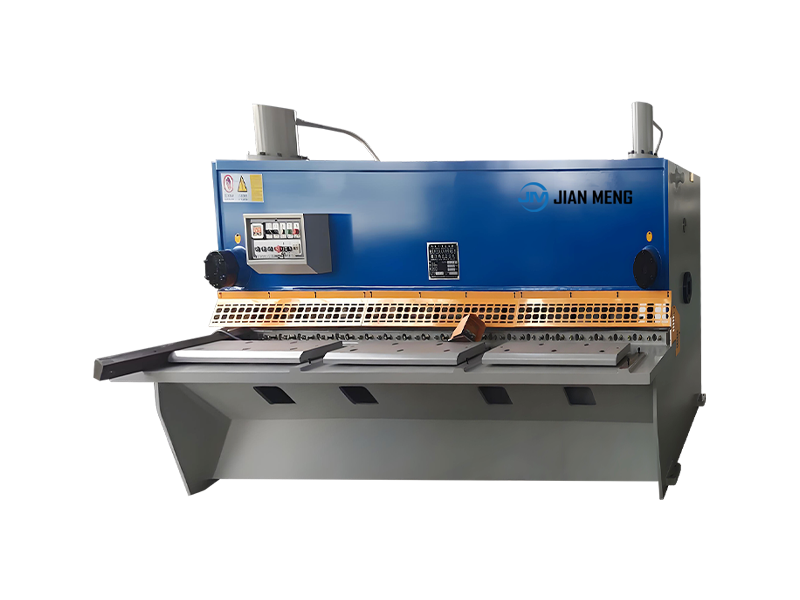

The Jianmeng QC11K hydraulic guillotine shearing machine has become a popular choice for users to cut sheet metal due to its adjustable blade clearance and angle.
When cutting sheets with a thickness exceeding 13 millimeters, guillotine shear has many advantages over other types of shearing cutting machines, including price discounts and high cutting accuracy.

Stress analysis and finite element analysis

The CAE software SOLIDWORKS can be used to analyze the linear static structure, stress, and deformation of the frames of bending machines and laser cutting machines. Therefore, FEA is very meaningful for situations with complex structures, highly complex loads, transient modeling, and combinations of the above factors.

CNC system

ESTUNE21S CNC system

High definition hydraulic display screen

Control ordinary motors and frequency converters

X-axis intelligent positioning

Multi step programming, 40 programs, each with 25 steps

Built in time relay function

One click function switching

Unilateral positioning function

One click backup and restore parameters

Chinese and English

Metric system

Hydraulic valve group

This machine adopts branded hydraulic valve group.

Due to its oil pressure overload protection function, oil leakage and valve jamming rarely occur.

Real time oil pressure monitoring ensures smooth oil flow and stable operation of equipment.

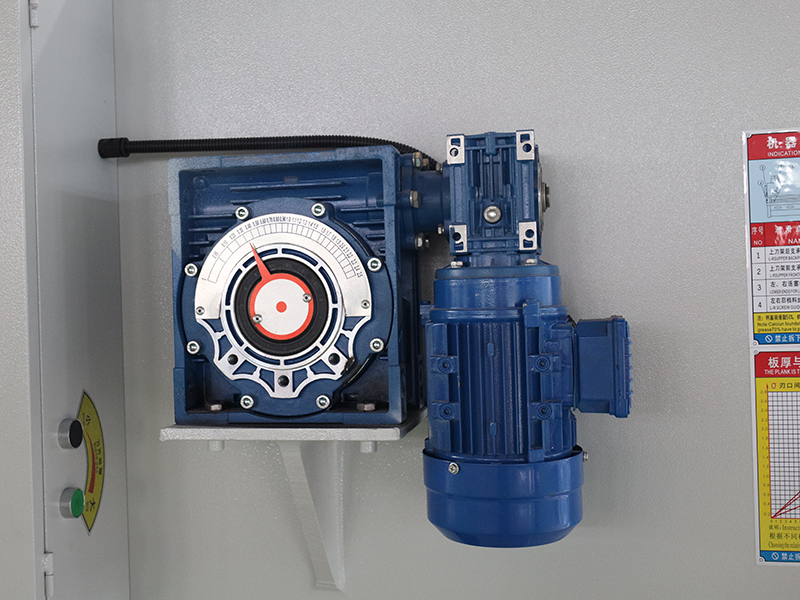

Automatic angle adjustment

Electric cutting angle adjustment device, no need for manual adjustment, automatically adjusts the cutting angle according to the thickness of the sheet.

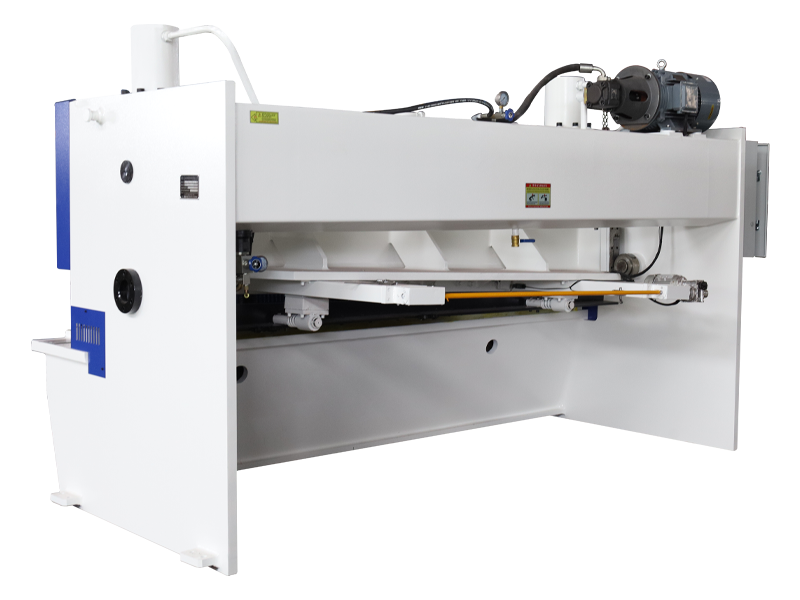

Back gauge

One of the important factors in shear capacity is the design and stability of the rear stopper material.

High quality cutting can only be achieved with excellent products, stability, and precise backstepping.

The movement of the rear stop system of the high-speed ball screw is also supported by linear guides, which helps the rear stop to achieve longer lifespan, higher sensitivity, and enhanced resistance to any collision.

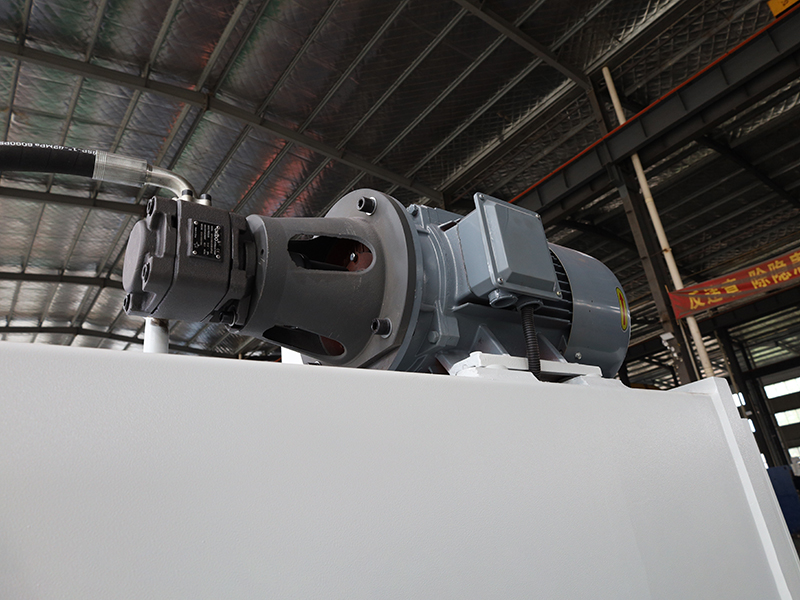

Main motor

The use of branded motors increases the service life of the machine and keeps it operating in a low-noise environment.

The power level and installation size of the motor comply with IEC standards, making it very easy to use and maintain.

We have the ability to customize the power and voltage of the machine to meet the specific voltage requirements of the customer's location.

Technical specifications

	Cutting thickness	Cutting width	Stroke times	Rear material travel	Main motor power	Shear angle	External dimensions	Weight
Unit	mm	mm	min-1	mm	kW	°	mm	t
6×2500	6	2500	12	20-600	7.5	30′-2°	3300×1580×2010	5
6×3200	6	3200	10	20-600	7.5	30′-2°	4000×1680×2010	6.4
6×4000	6	4000	9	20-600	11	30′-2°	4810×1730×2075	8.1
8×2500	8	2500	11	20-600	11	30′-2°	3300×1600×4810	5.6
8×3200	8	3200	10	20-600	11	30′-2°	3880×1630×2010	6.8
8×4000	8	4000	8	20-600	15	30′-2°	4810×1800×2125	9.8
10×3200	10	3200	8	20-600	15	30′-2°	3975×1800×2205	8.9
12×2500	12	2500	8	20-800	15	30′-2°30′	3275×1825×2180	8
12×3200	12	3200	7	20-800	15	30′-2°30′	3975×1860×2295	9.5
12×4000	12	4000	7	20-800	22	30′-2°30′	4880×2100×2460	14
16×2500	16	2500	7	20-800	22	30′-2°30′	3315×1950×2345	10.9
16×3200	16	3200	6	20-800	22	30′-2°30′	4015×2000×2350	13.4
20×2500	20	2500	6	20-800	30	30′-2°30′	3435×2220×2470	15.3
20×3200	20	3200	5	20-800	30	30′-2°30′	4235×2220×2470	18
25×3200	25	3200	5	20-800	45	30′-3°	4715×2380×2965	24
25×4000	25	4000	4	20-800	45	30′-3°	5110×2590×3200	31
25×6000	25	6000	5	20-1000	37*2	30′-3°	7515×2965×3740	55.5
30×2500	30	2500	4	20-1000	55	30′-3°30′	3755×2500×3000	27
