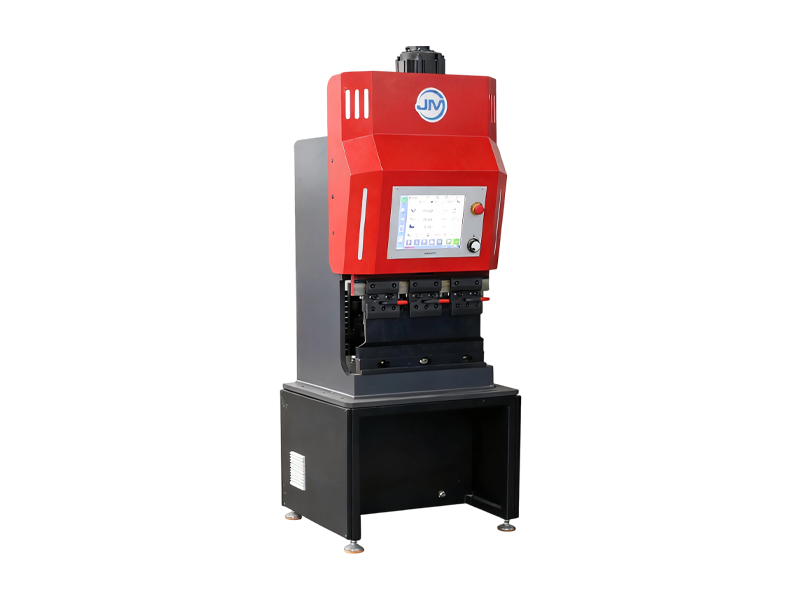

Electric servo type mini press brake

High rigidity frame

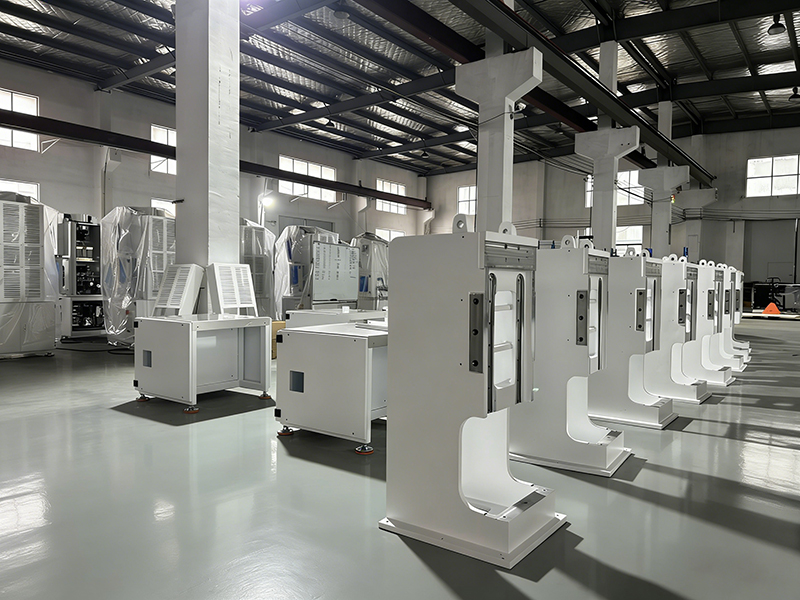

The machine bed and key components, including the moving tool holder, use welded steel plate structures for strength and stability.

The design features symmetrical weight distribution and reinforced ribs in the spindle box for support. Finite element analysis ensures optimal rigidity and stability.

To prevent deformation, the bed undergoes annealing to eliminate internal stress. Machining is done on a five-sided CNC center in one clamping, ensuring high accuracy and long-term precision.

Accuracy and stability

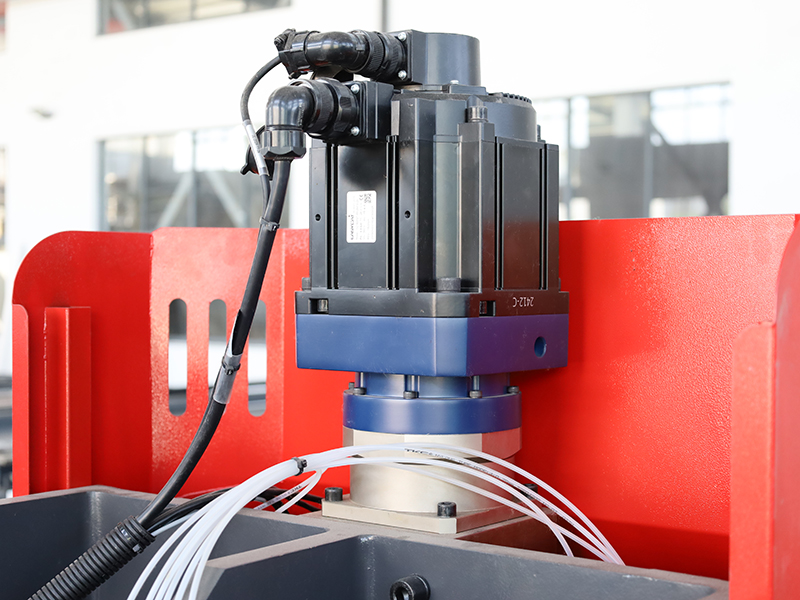

Repetitive positioning accuracy ± 0.01mm, servo motor+ball screw direct drive, combined with grating ruler closed-loop control, eliminates accuracy drift caused by hydraulic system oil temperature fluctuations.

CNC system

By using high-speed acceleration and deceleration algorithms and trajectory prediction algorithms, precise and smooth motion control is achieved, effectively balancing speed and accuracy.

Intelligent angle compensation and material parameter database improve bending accuracy and simplify operations.

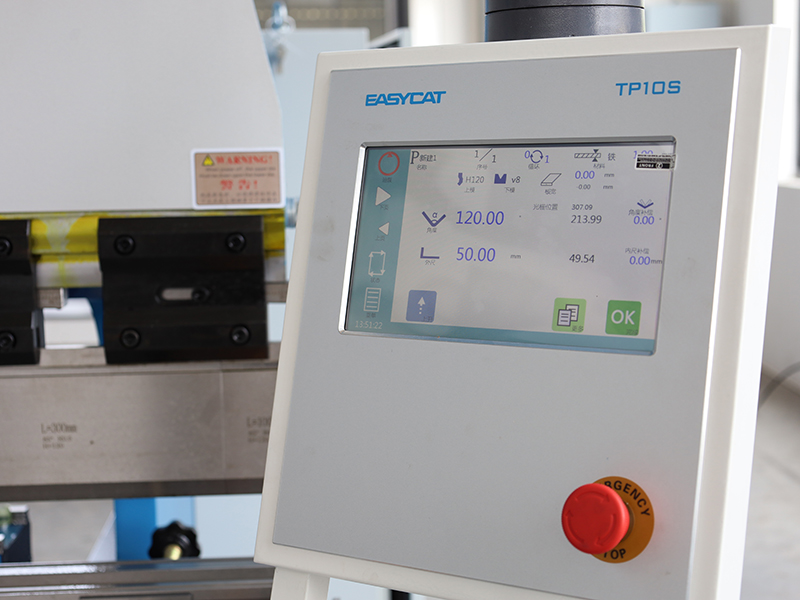

The high-end CNC system is equipped with high-speed and high-precision control algorithms to ensure high bending accuracy and smooth motion.

Fast clamps

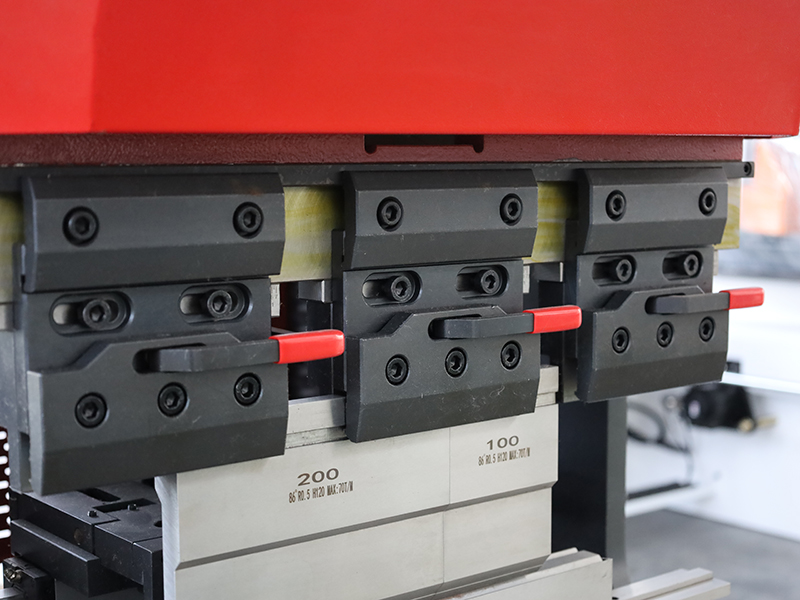

The upper die features a precision quick clamping function for easy die changing, increasing production efficiency.

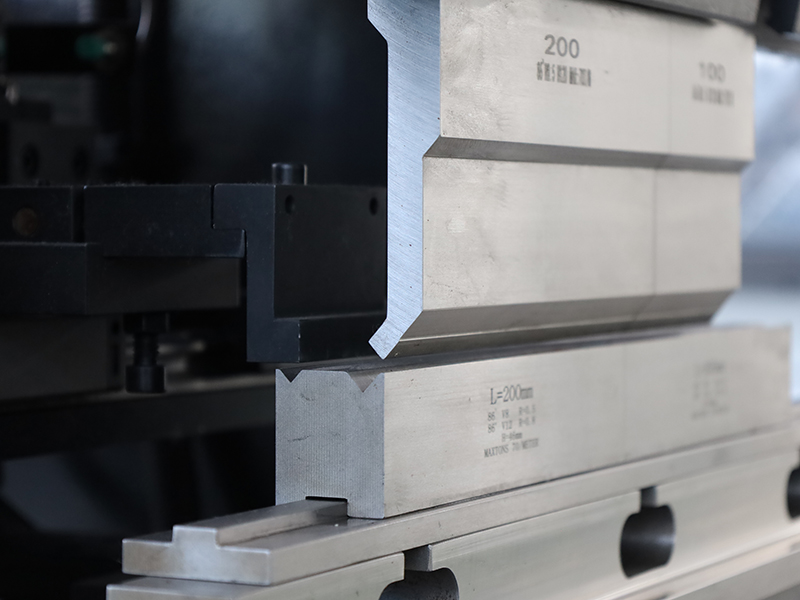

Two  V-dies have a simple design for easy toolings change, offering high hardness, toughness, and wear resistance.

Bending tool undergoes uniform heat treatment for long life and high precision, reducing correction steps and processing costs. Heat-treated dies provide greater durability than standard molds.

Back gauge

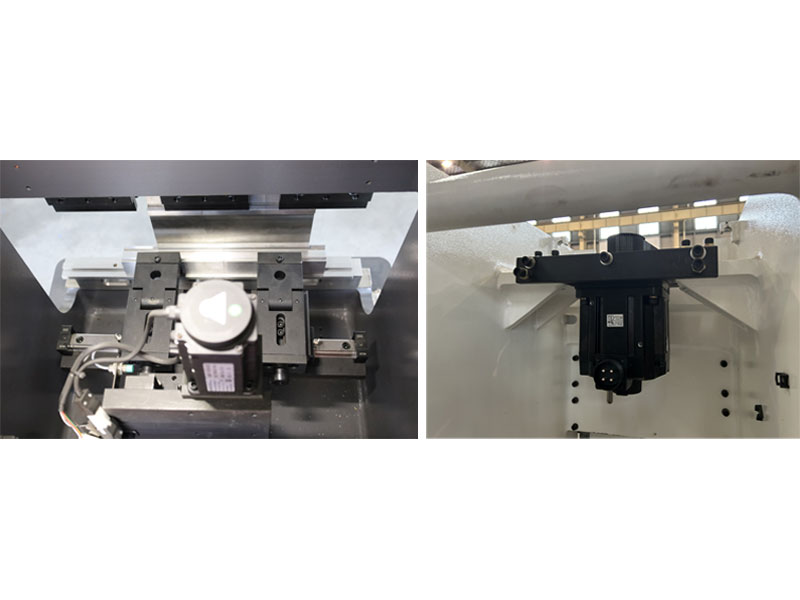

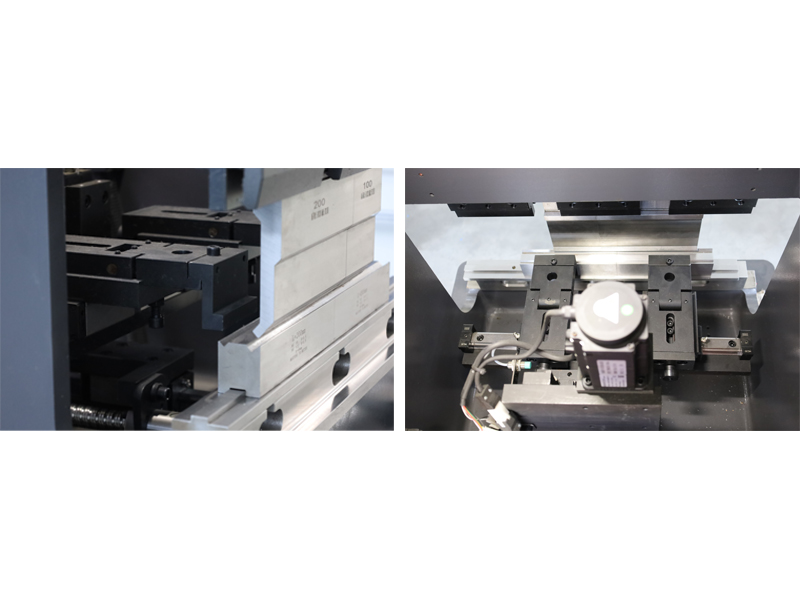

Servo motors drive X-axis, R-axis, and manual Z-axis ball screws for precise positioning in the rear material stopping system. Adopting a dual linear guide structure, it has high positioning accuracy and fast speed, improving the positioning accuracy and speed of servo motor drive. Flexible selection of multiple axis levels, reliable expansion of system functions, while maintaining precise positioning to meet various production needs.

Punches & Dies

Selecting the appropriate press brake punches and dies is a crucial aspect to consider before placing your order. The right combination of punch and die is essential for achieving the desired bending shape. We offer a wide range of tooling options tailored to meet the diverse bending requirements of our customers.

Protective device (optional)

If you have high requirements for security, DSP ® Laser protection is necessary.

Advantages:
Laser protection, multi beam receiver
Protected areas: front, middle, and rear
The security level is CAT. 4 and SIL3
Protection level of detection box: IP65
Laser classification: 1M class
Response time: 5 milliseconds
Shift point: 5mm+parking space
MAX protection distance can reach 15M
LED indicator lights display various statuses
