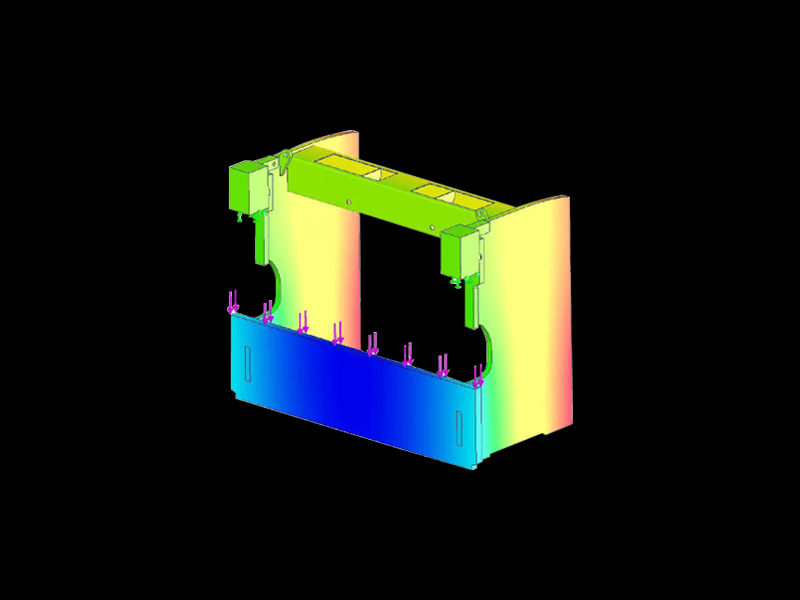

Stress analysis and finite element analysis

The CAE software SOLIDWORKS can be used to analyze the linear static structure, stress, and deformation of the frames of bending machines and laser cutting machines. Therefore, FEA is very meaningful for situations with complex structures, highly complex loads, transient modeling, and combinations of the above factors.

CNC system

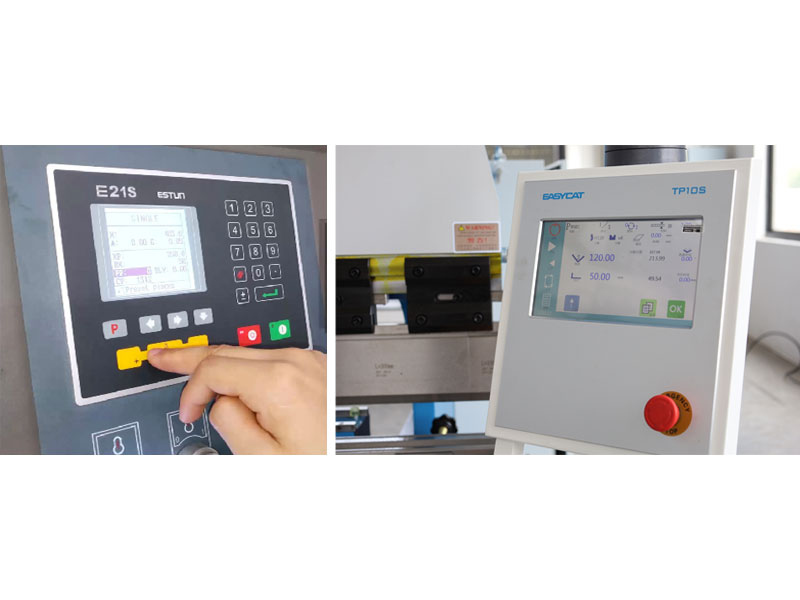

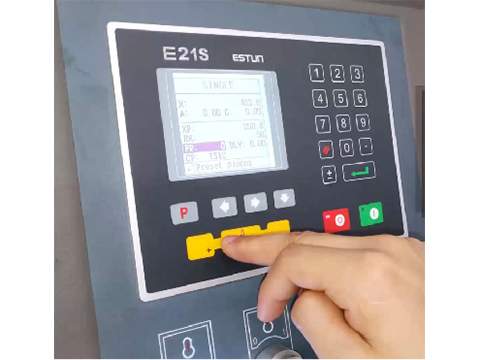

The Estun E21S series has the ability to control the X and Y axes and allows for direct editing of bending steps through the controller.

In addition, controllers such as the TP10S, Estun E300P, Delem DA41T, and Cybelec CT8 offer additional angle programming, touchscreen display, and R-axis control, all of which help make the bending process more efficient and user-friendly.

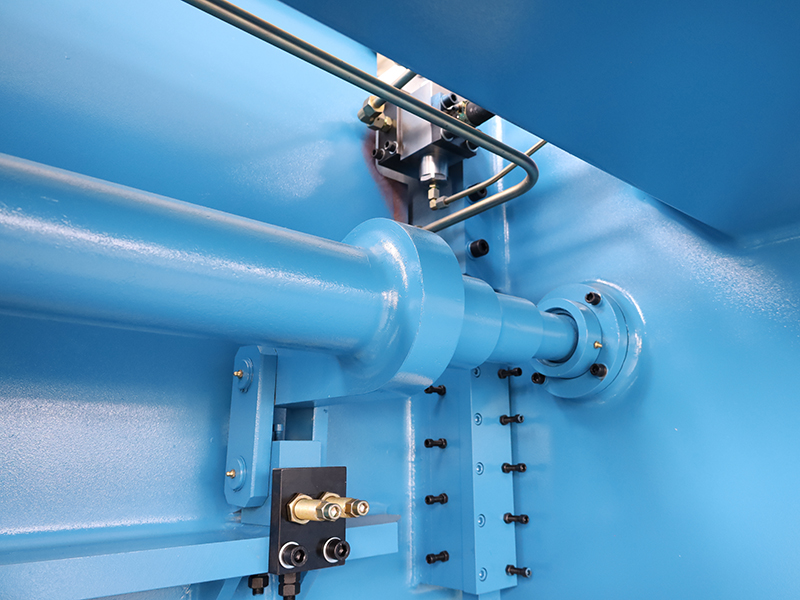

Twisted bar synchronous structure

The torsion axis synchronization structure is a purely mechanical synchronization solution that forcibly locks the displacement of bilateral drive units in a press brake through the rigid torsional motion of high-strength torsion shafts. It serves as a technological cornerstone in the market due to its high reliability and low maintenance costs.

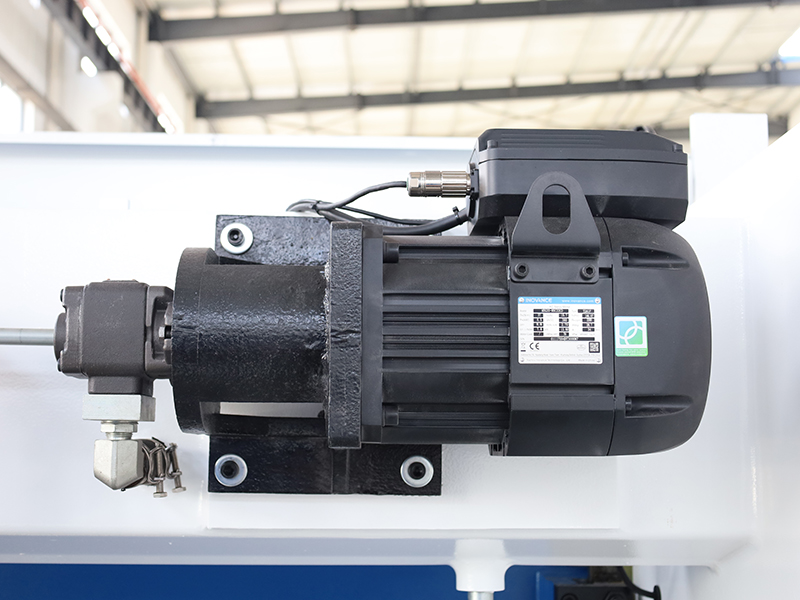

Main motor

The use of branded motors increases the service life of the machine and keeps it operating in a low-noise environment.

The power level and installation size of the motor comply with IEC standards, making it very easy to use and maintain.

We have the ability to customize the power and voltage of the machine to meet the specific voltage requirements of the customer's location.

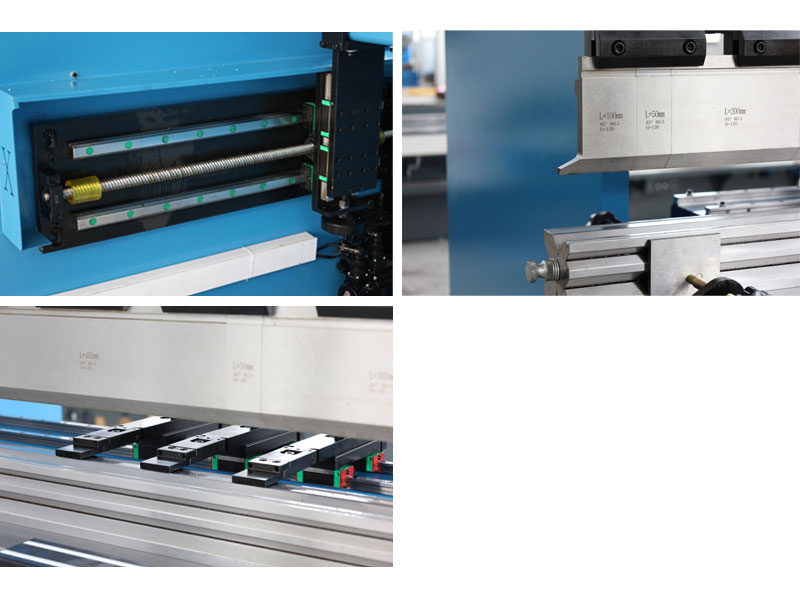

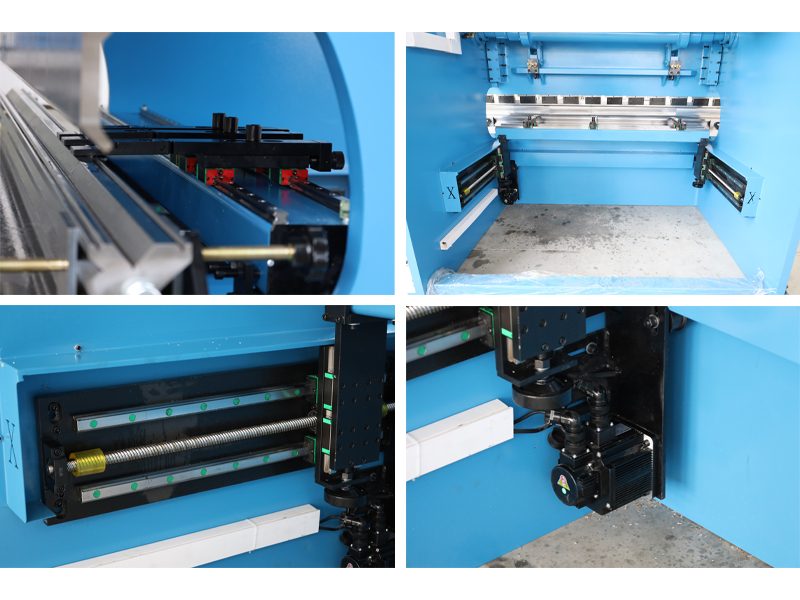

Back gauge

In order to ensure the accuracy of the X-axis movement, we use imported ball screws and double linear guides instead of traditional screws, thereby improving the accuracy and consistency of the manufacturing process.

We have installed a synchronous pulley mechanism controlled by a servo motor for the rear block, instead of a stepper motor.

This upgrade has improved our operational control and accuracy.

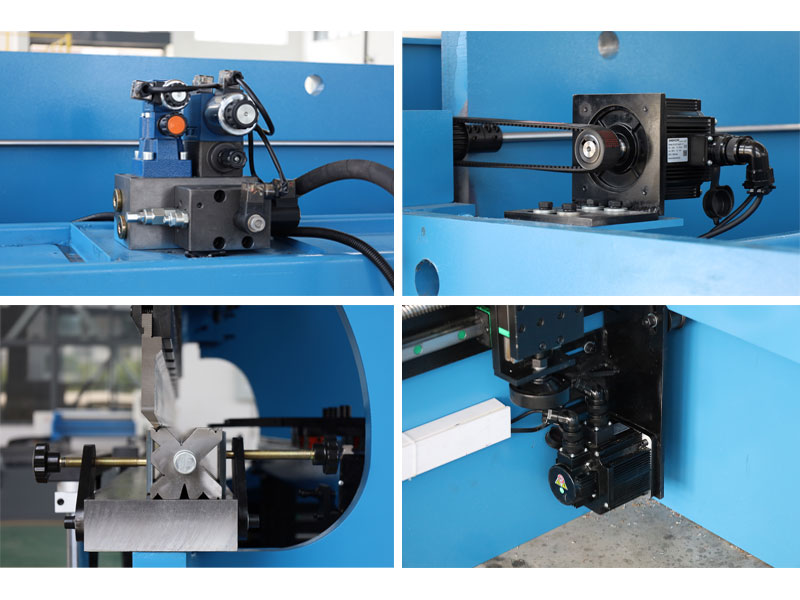

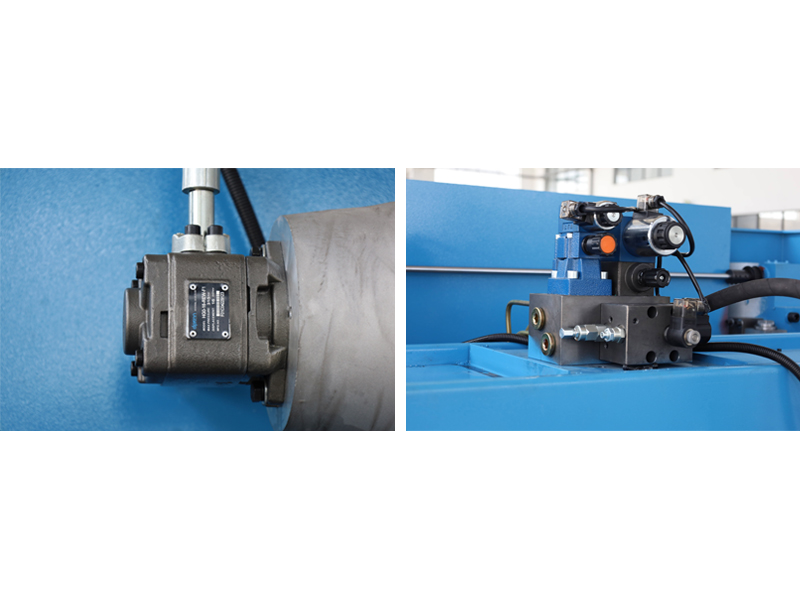

Hydraulic system

Adopting high-quality hydraulic valves. These valves are resistant to high pressure, durable, and have low maintenance costs.

During the lifting process, our machine can perform several actions such as rapid descent, slow descent, bending at working speed, rapid return, and emergency stop of the slider.

Our machine is capable of continuous operation at rated load, with a hydraulic system that maintains stability and accuracy, and is completely leak free.

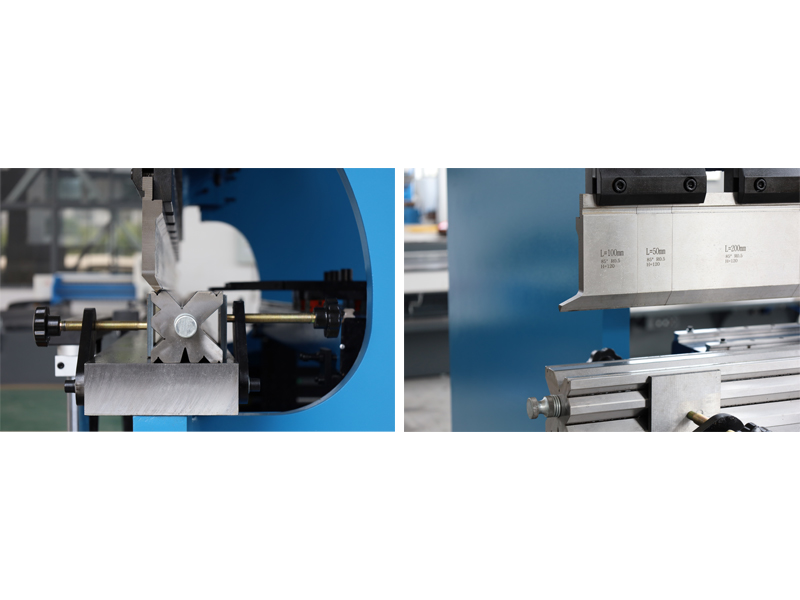

Punches & Dies

Selecting the appropriate press brake punches and dies is a crucial aspect to consider before placing your order. The right combination of punch and die is essential for achieving the desired bending shape. We offer a wide range of tooling options tailored to meet the diverse bending requirements of our customers.
