Suitable for scenarios such as aerospace, automotive restoration, and home appliance casings
Watch VideoVideo demonstration
Product details

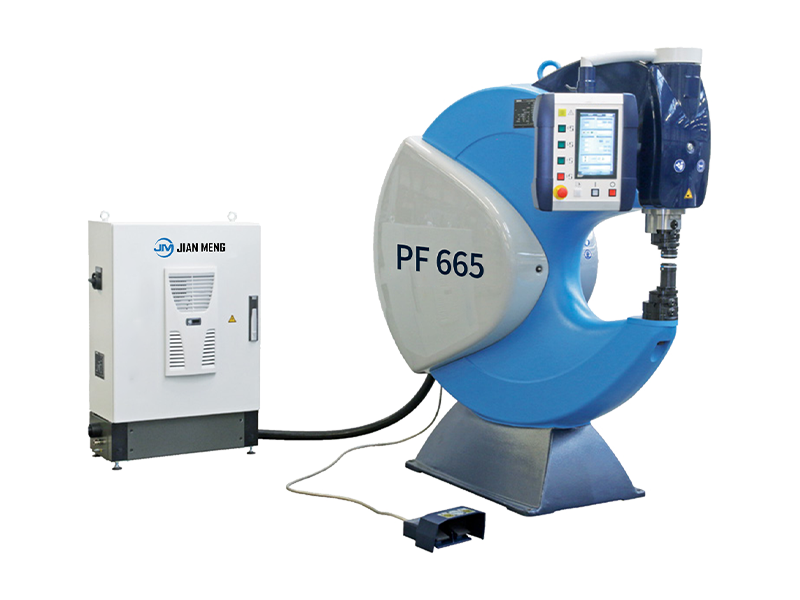

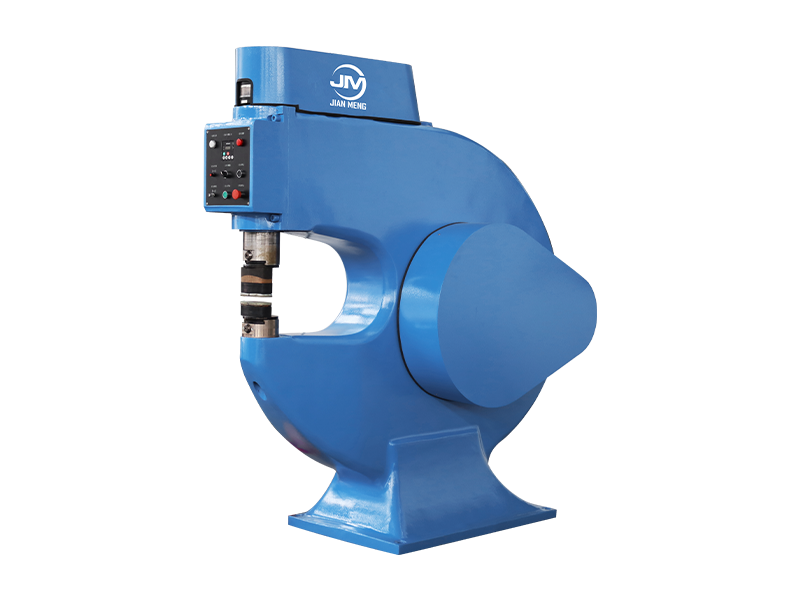

JIANMENG's PF665 Forming Machine is designed for chipless processing of metal sheets and profiles. It is capable of performing a wide range of forming processes, including shrinkage, stretching, shrinking, doming, planishing, flatting. The machine is specifically tailored for the precision processing and repair of metal sheets and profiles.
With a robust and durable design, the PF665 supports the quick changeover of various tools, enabling precise and delicate adjustments. This flexibility allows users to effectively meet diverse processing requirements.
Cast Machine Frame
• Enhances structural integrity and operational efficiency
• Enables compact integration of functional modules
• Delivers consistent mechanical properties and stable accuracy
• Optimizes strength-to-weight ratio to reduce overall mass
Fast Tools-Change Design
• Swap tools in seconds
• Less downtime, lower labor cost
• Ready for multi-process production

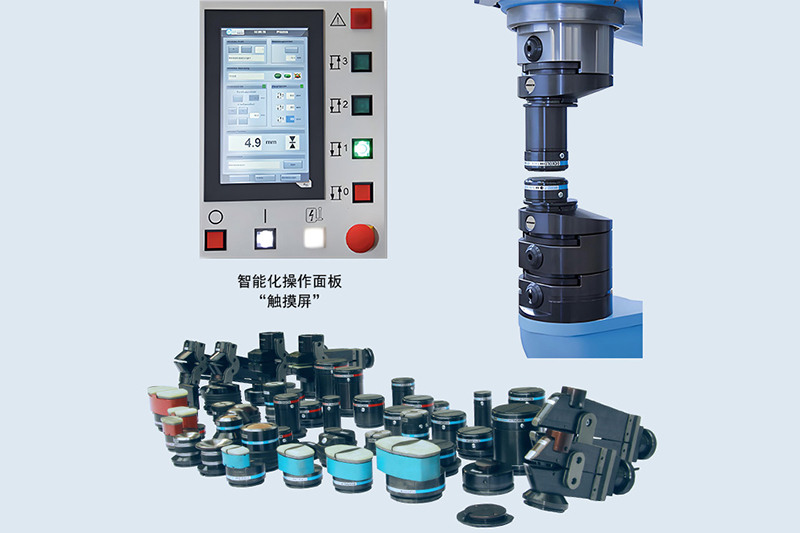

All-new Intelligent Control System
• Adjustable stroke speed
• Configurable reverse-stroke position
• User-friendly touch interface
• Program memory and one-touch recall
• Electronic diagnostics & fault tracking
Technical specifications of Stretch Forming Machine
| Item | Value | Item | Value |
| Steel (Rm tensile strength = 400 N/mm²） | 6.0 mm | Aluminum (Rm tensile strength = 250 N/mm²） | 8.0 mm |
| Copper (Rm tensile strength = 250 N/mm²） | 8.0 mm | Stainless steel (Rm tensile strength = 600 N/mm²） | 4.0 mm |
| Horizontal throat opening | 665 mm | Vertical throat opening | 430 mm |
| Work schedule | 8 mm | Work schedule per minute | 0 - 600 times/minute |
| Rated power | 6.5 kw | Adjustment amount of punch | 80 mm |
| Pass | Servo motor | Drive | Electric |
| Stroke frequency | Continuous stroke | Net weight | 2550 kg |
| Net weight of control cabinet | 90 kg | Length | 2580 mm |
| Width | 1321 mm | Height | 2400 mm |
Forming technology
JianMeng technology means accurate and chip free cold forming of metal sheets and profiles with low noise.

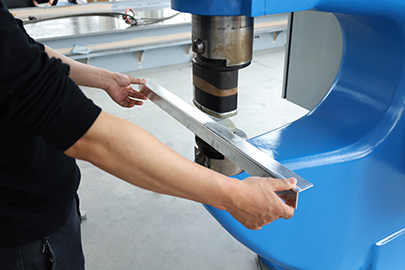

The same machine can be used for bending curved metal components, forming metal sheets, manufacturing new parts, as well as repairing and precisely correcting components.
Equipped with various forming tooling, these tools can be installed and replaced within seconds to adapt to the machine's tasks.
The Jian Meng PF665 metal shaping machine is built to be robust and durable, capable of delivering tremendous pressure while offering highly responsive control.
The product's versatility stems from its wide range of shaping tooling, which is easy to change, ensuring optimal machine utilization.

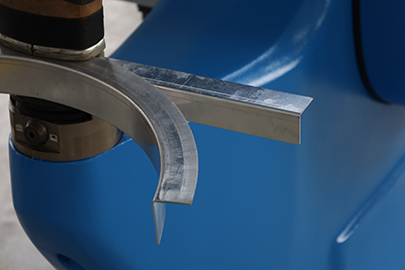

Shrinking
Shrinking sheet metal and profile sections
Varying degrees of shrinking effects

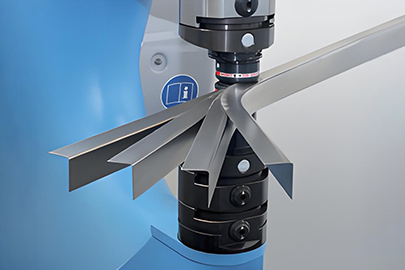

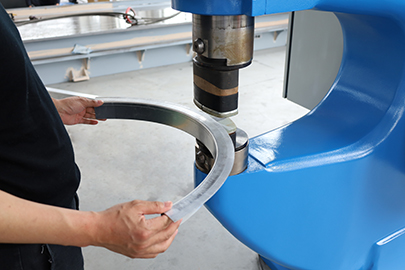

Stretching
Stretching sheet metal and profile sections
Varying degrees of stretching effects

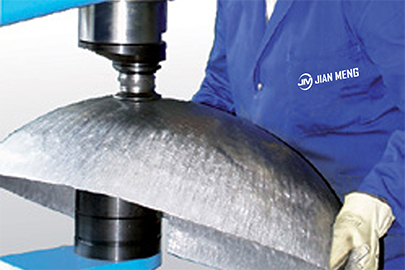

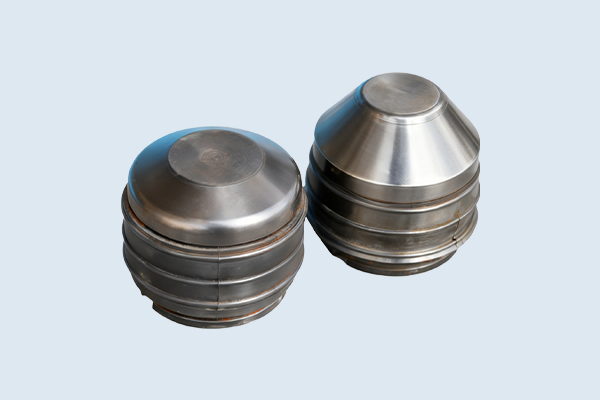

Doming
Doming sheet metal
Doming effect of sheet metal
Planishing
Planishing preformed or flat sheet blanks

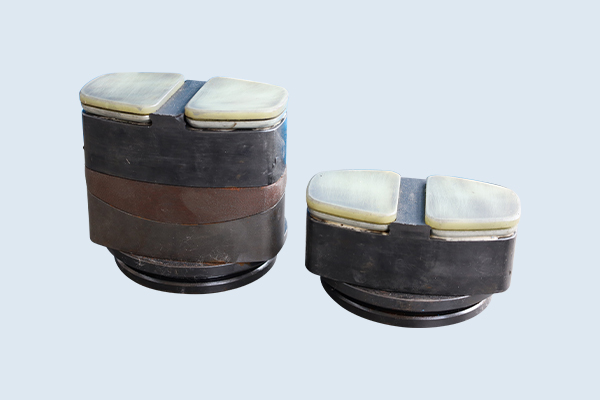

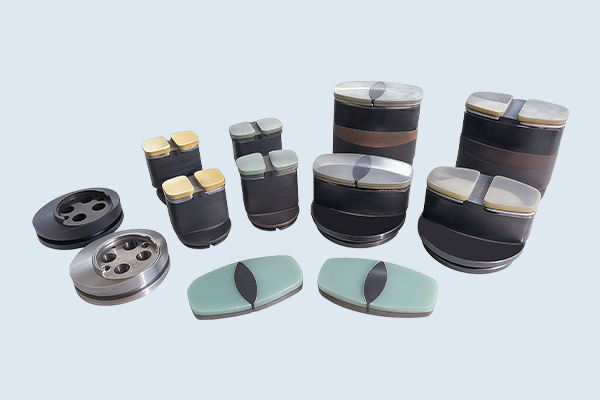

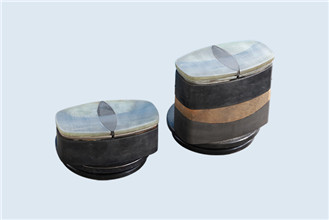

Kraftformer tools
Shrinking for aluminum (8mm)
Stretching for aluminum (8mm)
Planishing for steel (6mm)

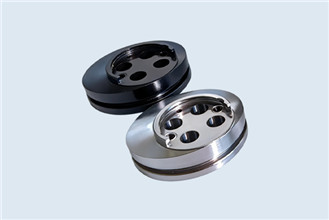

Adapter
Shrinking for aluminum (2.5mm)
Stretching for aluminum (2.5mm)
Shrinking for steel (2mm)
Stretching for steel (2mm)
Planishing for steel (2mm)
Application Field of Metal Shaping and Forming
Aerospace manufacturing and aircraft maintenance: Such as the bending of aircraft skins and the shaping/repair of aircraft engine cowlings.
Sheet metal processing for rail transit and high-speed rail: Manufacturing of train locomotives and carriages
Shipbuilding and yacht manufacturing
Old car restoration and prototype car manufacturing
Heavy industry prototype production
Repair industry (aircraft, rail cars, ships)
Sheet metal custom machining center and OEM factory
Metal art and large-scale sculpture industry
Manufacturing of large stainless steel structures
New energy equipment shell processing
Irregular metal decorative panel
Reshaping irregular formed parts
