1. Introduction
In modern machining and construction fields, slotting processing is a basic and essential process, which is widely used in the production and processing of mechanical parts, wood products, building materials, and other products. Grooves, slots, and keyways processed by slotting machines not only play a role in positioning, connecting, and transmitting power but also directly affect the assembly accuracy, service life, and overall performance of the final product. For example, in mechanical manufacturing, keyways processed by slotting machines are used to connect shafts and gears, ensuring the synchronous rotation of components; in woodworking, slots processed by slotting machines are used for splicing wood boards, improving the stability of the product; in construction, slotting machines are used to process grooves on walls and floors for laying wires, pipes, and other facilities.
With the continuous development of industrial technology, the demand for slotting processing is increasingly diversified—different industries, different materials (such as metal, wood, concrete), and different workpiece sizes have different requirements for slotting precision, slot shape, and processing efficiency. Traditional manual slotting methods have the disadvantages of low efficiency, poor precision consistency, and high labor intensity, which can no longer meet the needs of modern large-scale and high-precision production. Slotting machines, as specialized equipment for slotting processing, have gradually become the core equipment in various industries due to their high efficiency, high precision, and strong adaptability.
However, there are many types of slotting machines on the market, and the structural characteristics, performance parameters, and applicable scenarios of different types of slotting machines vary greatly. For related practitioners, it is crucial to accurately understand the types and characteristics of slotting machines, master scientific operation methods, and do a good job in daily maintenance. This paper comprehensively analyzes the types, characteristics, and use methods of slotting machines, providing a comprehensive and professional technical guide for relevant practitioners to select, use, and maintain slotting machines.
2. Classification of Slotting Machines and Their Characteristics
According to the structure, processing method, application field, and automation level, slotting machines can be divided into multiple types. Each type has unique structural design and performance characteristics, which are suitable for different slotting processing scenarios. The following is a detailed classification and analysis of slotting machines.
2.1 Classification by Processing Method
According to the different processing methods,
slotting machines can be divided into planer-type slotting machines, broaching-type slotting machines, milling-type slotting machines, and grinding-type slotting machines. This classification is based on the way the cutting tool acts on the workpiece to complete the slotting processing.
2.1.1 Planer-Type Slotting Machines
Planer-type slotting machines are the most common type of slotting machine, with a simple structure and easy operation. Their core working principle is similar to that of planers: the cutting tool is installed on the ram, and the ram reciprocates vertically (or horizontally) to drive the cutting tool to cut the workpiece, thereby processing grooves of different shapes and sizes. The workpiece is clamped on the worktable, and the worktable can move horizontally or vertically to adjust the processing position.
Key Characteristics: Simple structure, low manufacturing cost, easy operation and maintenance; suitable for processing shallow grooves, keyways, and slots with simple shapes; processing precision is medium (dimensional tolerance ±0.02-0.05mm), and processing efficiency is moderate; suitable for small and medium-sized enterprises and small-batch processing scenarios. The disadvantage is that the processing of deep grooves and complex-shaped slots is limited, and the vibration during processing is relatively large, which affects the surface quality of the workpiece.
Applicable Scenarios: Processing of keyways on shafts, shallow grooves on mechanical parts, slots on small-sized workpieces, and other simple slotting processing; widely used in machinery manufacturing, auto parts processing, and other fields.
2.1.2 Broaching-Type Slotting Machines
Broaching-type slotting machines (also known as broaching machines) use a broach with a gradually increasing tooth height to process grooves by means of linear broaching motion. The broach is a multi-tooth cutting tool, and each tooth removes a certain amount of material during the broaching process, so that the groove size and shape meet the requirements in one broaching process. Broaching-type slotting machines are divided into horizontal broaching machines and vertical broaching machines according to the direction of broaching motion.
Key Characteristics: High processing precision (dimensional tolerance ±0.005-0.01mm), good surface quality (surface roughness Ra 0.2-1.6μm); high processing efficiency, which can complete the processing of complex grooves in one pass; stable processing quality and good consistency; suitable for mass production. The disadvantage is that the broach has high manufacturing cost, poor versatility, and needs to be replaced for different types of grooves; it is not suitable for processing large-sized workpieces and deep grooves with small width.
Applicable Scenarios: Mass processing of keyways, spline grooves, square grooves, and other complex-shaped grooves on precision mechanical parts; widely used in aerospace, automotive manufacturing, precision mold, and other fields that require high precision and large batch processing.
2.1.3 Milling-Type Slotting Machines
Milling-type slotting machines (also known as slotting milling machines) use a milling cutter to process grooves by means of high-speed rotation. The milling cutter is installed on the spindle, and the spindle rotates at high speed to drive the milling cutter to cut the workpiece; the worktable drives the workpiece to move linearly to complete the slotting processing. Milling-type slotting machines can use different types of milling cutters (such as end mills, side mills, slotting cutters) to process grooves of different shapes and sizes.
Key Characteristics: Strong versatility, can process various types of grooves (such as V-shaped grooves, U-shaped grooves, T-shaped grooves, dovetail grooves); high processing efficiency, suitable for both small-batch and mass production; processing precision is high (dimensional tolerance ±0.01-0.03mm), and surface quality is good; the worktable can realize multi-directional motion, which is suitable for processing complex workpieces. The disadvantage is that the structure is relatively complex, the manufacturing cost is higher than that of planer-type slotting machines, and the operation requirements for operators are higher.
Applicable Scenarios: Processing of various complex grooves on mechanical parts, wood products, and building materials; widely used in machinery manufacturing, woodworking, construction, and other fields.
2.1.4 Grinding-Type Slotting Machines
Grinding-type slotting machines are specialized equipment for precision slotting processing, which use a grinding wheel to process grooves by means of high-speed rotation. The grinding wheel is dressed into the required groove shape, and the workpiece is clamped on the worktable. The worktable drives the workpiece to move linearly, and the grinding wheel grinds the workpiece surface to form the required groove. Grinding-type slotting machines are mainly used for finishing grooves with high precision requirements.
Key Characteristics: Ultra-high processing precision (dimensional tolerance ±0.001-0.005mm), excellent surface quality (surface roughness Ra 0.01-0.2μm); suitable for finishing grooves with high precision and high surface quality requirements; stable processing performance and good consistency. The disadvantage is that the processing efficiency is low, the equipment cost is high, the maintenance is complex, and it is not suitable for rough machining and large-batch processing.
Applicable Scenarios: Finishing of precision grooves on aerospace components, semiconductor equipment parts, precision molds, and other high-precision products; widely used in high-end manufacturing fields that require ultra-high precision slotting processing.
2.2 Classification by Application Field
According to the different application fields, slotting machines can be divided into metal processing slotting machines, woodworking slotting machines, and construction slotting machines. This classification is based on the different materials and processing requirements of the application fields.
2.2.1 Metal Processing Slotting Machines
Metal processing slotting machines are the most widely used type of slotting machine, mainly used for processing metal workpieces (such as steel, cast iron, aluminum alloy, copper alloy). They are usually made of high-strength cast iron or steel, with high rigidity and stability, and can withstand large cutting forces. According to the processing precision, they can be divided into ordinary metal slotting machines and precision metal slotting machines.
Key Characteristics: High rigidity, strong load-bearing capacity, suitable for processing hard metal materials; adjustable processing parameters, can meet different slotting precision requirements; equipped with cooling systems to avoid workpiece deformation and tool wear caused by excessive cutting temperature. The disadvantage is that the equipment is heavy and the energy consumption is relatively high.
Applicable Scenarios: Processing of keyways, grooves, and slots on metal mechanical parts; widely used in machinery manufacturing, auto parts, aerospace, and other fields.
2.2.2 Woodworking Slotting Machines
Woodworking slotting machines are specialized equipment for processing wood and wood-based panel workpieces, mainly used for processing slots, grooves, and tenons on wood boards, wooden doors, wooden windows, and other products. They are usually made of lightweight and high-strength materials, with a compact structure and easy operation.
Key Characteristics: Compact structure, light weight, easy movement and operation; equipped with special cutting tools for wood processing, with high cutting efficiency and good surface quality; low noise and low energy consumption; suitable for processing various wood materials (such as solid wood, plywood, MDF). The disadvantage is that the rigidity is low, and it is not suitable for processing hard materials.
Applicable Scenarios: Woodworking processing industry, such as furniture manufacturing, wooden door and window processing, decoration engineering, etc.
2.2.3 Construction Slotting Machines
Construction slotting machines (also known as wall slotting machines) are specialized equipment for slotting processing in construction projects, mainly used for processing grooves on walls, floors, and ceilings for laying wires, cables, water pipes, and gas pipes. They are usually portable or small-sized, with strong mobility and adaptability to construction sites.
Key Characteristics: Strong mobility, easy to carry and operate on construction sites; equipped with high-power motors and wear-resistant cutting tools, suitable for processing concrete, brick walls, and other building materials; adjustable slot width and depth to meet different construction requirements. The disadvantage is that the processing precision is low, and the noise and dust generated during processing are relatively large.
Applicable Scenarios: Construction projects, such as residential decoration, commercial building decoration, municipal engineering, etc.
2.3 Classification by Automation Level
According to the different automation levels, slotting machines can be divided into manual slotting machines, semi-automatic slotting machines, and full-automatic slotting machines. This classification is based on the degree of manual intervention in the processing process.
2.3.1 Manual Slotting Machines
Manual slotting machines are the most basic type of slotting machine, with a simple structure and low cost. The entire processing process (such as workpiece clamping, feed motion, tool adjustment) needs to be completed manually by operators. Manual slotting machines are mainly used for small-batch, low-precision slotting processing.
Key Characteristics: Simple structure, low cost, easy maintenance; small size, suitable for small workshops and small-batch processing; low requirements for operators' professional skills. The disadvantage is that the processing efficiency is low, the precision consistency is poor, and the labor intensity of operators is high.
2.3.2 Semi-Automatic Slotting Machines
Semi-automatic slotting machines integrate manual operation and automatic control. The workpiece clamping and tool adjustment are completed manually, while the feed motion, cutting process, and tool retraction are completed automatically by the equipment. Semi-automatic slotting machines have higher processing efficiency and precision consistency than manual slotting machines.
Key Characteristics: Moderate processing efficiency and precision; simple operation, reducing labor intensity of operators; strong versatility, suitable for small and medium-sized batch processing; lower cost than full-automatic slotting machines. The disadvantage is that it still needs manual intervention, and the processing efficiency is limited by the operator's skill level.

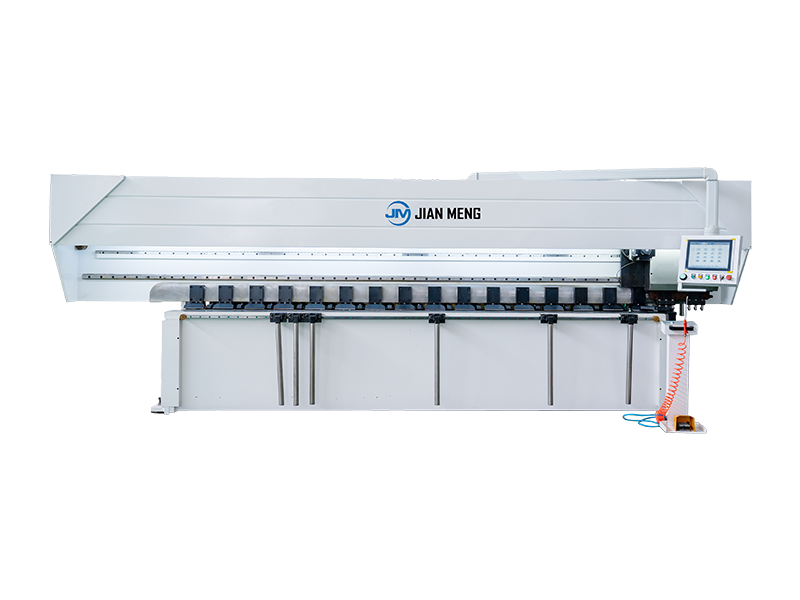

2.3.3 Full-Automatic Slotting Machines
Full-automatic slotting machines are equipped with advanced numerical control (CNC) systems and automatic loading and unloading devices. The entire processing process (such as workpiece clamping, tool selection, parameter setting, cutting processing, and workpiece unloading) is completed automatically by the equipment, without manual intervention. Full-automatic slotting machines are mainly used for large-batch, high-precision slotting processing.
Key Characteristics: High processing efficiency, suitable for large-batch production; high processing precision, good consistency; low labor intensity, reducing the impact of human factors on processing quality; can realize complex groove processing and multi-station processing. The disadvantage is that the equipment cost is high, the maintenance is complex, and the requirements for operators' professional skills are high.
3. Core Characteristics of Slotting Machines
Regardless of the type of slotting machine, they all have some common core characteristics, which are the key advantages that distinguish them from manual slotting and other processing methods. These core characteristics determine the processing efficiency, precision, and adaptability of slotting machines, and are also the basis for relevant practitioners to select and use slotting machines.
3.1 High Processing Efficiency
Compared with manual slotting methods, slotting machines adopt mechanical or automatic cutting methods, which can greatly improve processing efficiency. For example, broaching-type slotting machines can complete the processing of complex grooves in one pass; full-automatic slotting machines can realize continuous batch processing, and the processing efficiency is dozens of times that of manual slotting. Even the most basic planer-type slotting machines have higher processing efficiency than manual slotting, which can effectively reduce the processing cycle and improve production efficiency.
3.2 Stable Processing Precision
Slotting machines are equipped with precise guide systems, feed systems, and positioning devices, which can ensure the stability and consistency of processing precision. The processing precision of different types of slotting machines varies, but even ordinary slotting machines can meet the precision requirements of most general processing scenarios. Precision slotting machines (such as broaching-type, grinding-type) can achieve ultra-high precision, which is difficult to achieve by manual slotting. The stable processing precision can ensure the consistency of product quality and reduce the scrap rate.
3.3 Strong Adaptability
Slotting machines have strong adaptability to different materials, workpiece sizes, and groove shapes. They can process various materials (such as metal, wood, concrete), and can process grooves of different shapes (such as straight grooves, curved grooves, V-shaped grooves, T-shaped grooves) and sizes. By replacing different cutting tools and adjusting processing parameters, slotting machines can meet the slotting requirements of different industries and different workpieces, with strong versatility.
3.4 Easy Operation and Maintenance
Most slotting machines have a simple structure and user-friendly operation interface, which is easy for operators to master. Even semi-automatic and full-automatic slotting machines only need operators to master basic parameter setting and equipment operation skills. In addition, the daily maintenance of slotting machines is relatively simple, mainly including lubrication, cleaning, and tool inspection, which can effectively extend the service life of the equipment and reduce maintenance costs.
3.5 Good Safety Performance
Modern slotting machines are equipped with a variety of safety protection devices, such as protective covers, emergency stop buttons, and overload protection devices, which can effectively protect the personal safety of operators. For example, the protective cover can prevent cutting chips from splashing and hurting operators; the emergency stop button can stop the equipment immediately in case of emergency, avoiding safety accidents. These safety protection devices make the operation of slotting machines safer and more reliable.
4. User Guide for Slotting Machines
To ensure the safe, efficient, and high-quality operation of slotting machines, operators must master scientific operation methods, do a good job in equipment installation, parameter setting, daily maintenance, and strictly abide by safety precautions. The following is a detailed user guide for slotting machines, applicable to most types of slotting machines.
4.1 Equipment Installation
The correct installation of slotting machines is the basis for ensuring stable processing precision and safe operation. The installation steps are as follows:
1. Site Selection: Select a flat, solid, and well-ventilated site to install the slotting machine. The site should be away from vibration sources (such as other large machinery) to avoid affecting the processing precision of the equipment; at the same time, ensure that there is enough operating space around the equipment for operators to operate and maintain.
2. Leveling and Fixing: Place the slotting machine on the installation foundation, use a level gauge to check the levelness of the equipment, and adjust the leveling feet to ensure that the equipment is level and stable. Then, use anchor bolts to fix the equipment on the foundation to prevent the equipment from moving during operation.
3. Connection of Power and Auxiliary Systems: Connect the power supply of the equipment according to the rated voltage and power requirements, and check the correctness of the power connection to avoid short circuits and other faults. For slotting machines with cooling systems, connect the cooling water pipe and ensure that the cooling system works normally; for portable construction slotting machines, check the battery power or power connection.
4. Equipment Inspection: After installation, check the tightness of all components (such as bolts, nuts, and tool holders) to ensure that there is no looseness; check the movement of the guide system and feed system to ensure that they are smooth and free of jamming; check the cutting tool to ensure that it is installed correctly and firmly.
4.2 Operation Steps
The operation steps of slotting machines vary slightly according to the type and automation level, but the general operation steps are as follows:
1. Workpiece Preparation: Check the workpiece material, size, and slotting requirements, and process the workpiece into the required shape and size (such as rough machining) before slotting. Clean the surface of the workpiece to remove oil, rust, and other impurities to avoid affecting the clamping accuracy and processing quality.
2. Workpiece Clamping: Clamp the workpiece on the worktable of the slotting machine, and adjust the clamping position and force to ensure that the workpiece is firmly clamped and does not move during processing. At the same time, ensure that the processing position of the workpiece is aligned with the cutting tool, and avoid collision between the tool and the workpiece.
3. Tool Selection and Installation: Select the appropriate cutting tool according to the workpiece material, slot shape, and processing requirements. For example, use end mills for milling-type slotting machines, broaches for broaching-type slotting machines, and special slotting tools for woodworking slotting machines. Install the tool on the tool holder, and adjust the tool position and height to ensure that the tool is aligned with the processing position.
4. Parameter Setting: Set the processing parameters according to the workpiece material, slot size, and processing precision requirements. The main parameters include cutting speed, feed rate, slot depth, and slot width. For CNC slotting machines, input the processing program into the numerical control system according to the slotting requirements.
5. Test Processing: Before formal processing, perform a test processing on a small sample or the edge of the workpiece to check whether the processing parameters are reasonable, whether the tool is installed correctly, and whether the slot size and shape meet the requirements. If there is any problem, adjust the parameters or tool position in time.
6. Formal Processing: Start the slotting machine, and the equipment will complete the slotting processing according to the set parameters and operation mode. During the processing process, operators should closely monitor the operation status of the equipment, the cutting condition of the tool, and the processing quality of the workpiece. If any abnormal situation (such as abnormal noise, tool wear, or workpiece deformation) is found, stop the equipment immediately and deal with it.
7. Workpiece Inspection and Unloading: After the processing is completed, stop the equipment and take down the workpiece. Use precision measuring instruments (such as calipers, micrometers, and groove gauges) to inspect the slot size, shape, and surface quality of the workpiece. If the inspection results do not meet the requirements, adjust the processing parameters and reprocess until the requirements are met.
4.3 Parameter Setting Skills
The reasonable setting of processing parameters is crucial to the processing efficiency, precision, and tool life of slotting machines. The following are the key parameter setting skills for different types of slotting machines:
- Planer-Type Slotting Machines: The cutting speed is generally 10-30m/min, and the feed rate is 0.1-0.5mm/stroke. For hard materials (such as steel), the cutting speed and feed rate should be reduced; for soft materials (such as aluminum alloy), the cutting speed and feed rate can be increased. The slot depth should be set according to the required size, and it is recommended to adopt multi-pass cutting for deep grooves to avoid tool damage and workpiece deformation.
- Broaching-Type Slotting Machines: The broaching speed is generally 5-15m/min, and the broaching feed is determined by the tooth height of the broach. For high-precision processing, the broaching speed should be reduced, and the broach should be dressed regularly to ensure its sharpness. The broaching depth is determined by the broach, and it is not necessary to adjust the depth manually.
- Milling-Type Slotting Machines: The spindle speed is generally 1000-5000r/min, and the feed rate is 50-200mm/min. The spindle speed is determined by the tool material and workpiece material: for diamond tools and hard metal workpieces, the spindle speed should be increased; for high-speed steel tools and soft materials, the spindle speed can be reduced. The slot depth and width are adjusted by the feed motion of the worktable and the tool.
- Grinding-Type Slotting Machines: The grinding wheel speed is generally 3000-6000r/min, and the feed rate is 10-50mm/min. The grinding depth is controlled within 0.005-0.02mm for finish grinding, and 0.05-0.1mm for rough grinding. The grinding wheel should be dressed regularly to ensure its shape and sharpness.
4.4 Daily Maintenance
Daily maintenance of slotting machines can effectively extend the service life of the equipment, ensure stable processing precision, and reduce the occurrence of faults. The daily maintenance content mainly includes the following aspects:
- Lubrication: Regularly add lubricating oil to the guide system, feed system, spindle, and other moving components of the equipment to reduce friction and wear. The type and amount of lubricating oil should be in accordance with the equipment manual, and the lubricating oil should be replaced regularly (generally every 3-6 months).
- Cleaning: After each operation, clean the equipment surface, worktable, tool holder, and other components to remove cutting chips, dust, and oil stains. For the cooling system, clean the cooling water tank and filter regularly to avoid blockage of the cooling pipe.
- Tool Inspection and Replacement: Regularly check the wear of the cutting tool. If the tool is worn, passivated, or damaged, replace it in time to avoid affecting the processing quality and damaging the equipment. The replaced tool should be cleaned and stored properly.
- Equipment Inspection: Regularly check the tightness of all components (such as bolts, nuts, and tool holders), and tighten them in time if there is any looseness. Check the electrical system and cooling system to ensure that they work normally. For CNC slotting machines, check the numerical control system and programming to avoid program errors.
- Storage: If the slotting machine is not used for a long time, it should be cleaned thoroughly, coated with anti-rust oil, and covered with a protective cover to prevent dust and rust. The power supply and cooling water should be cut off to avoid equipment damage.
4.5 Safety Precautions
The operation of slotting machines involves high-speed rotation and cutting, which has certain safety risks. Operators must strictly abide by the following safety precautions to ensure personal and equipment safety:
- Operators must wear protective equipment (such as safety glasses, gloves, and work clothes) before operation to avoid cutting chips splashing and hurting people.
- Before starting the equipment, check the equipment status, tool installation, and workpiece clamping to ensure that there is no abnormality. Do not start the equipment when the protective cover is not installed or damaged.
- During the operation, do not touch the rotating tool, workpiece, or moving components with hands or other objects to avoid personal injury. Do not open the protective cover during the processing process.
- Do not adjust the processing parameters, tool position, or workpiece clamping during the operation of the equipment. If adjustment is needed, stop the equipment first and cut off the power supply.
- In case of abnormal situation (such as abnormal noise, equipment jamming, or tool damage) during operation, stop the equipment immediately, cut off the power supply, and deal with it after checking the cause. Do not force the equipment to operate.
- Operators must be trained and qualified before operating the slotting machine. Do not let untrained personnel operate the equipment without permission.
- Keep the operating site clean and tidy, and do not place irrelevant objects around the equipment to avoid affecting the operation and causing safety accidents.
5. Common Problems and Solutions in the Use of Slotting Machines
In the process of using slotting machines, due to factors such as improper operation, parameter setting, tool wear, and equipment aging, some common problems may occur, which affect the processing quality and efficiency. The following are common problems and corresponding solutions:
5.1 Problem 1: Poor Surface Quality of the Slot (Rough Surface, Scratches)
Causes: Passivation of the cutting tool, improper processing parameters (too high feed rate, too large cutting depth), insufficient cooling, or unclean surface of the workpiece.
Solutions: Replace or dress the cutting tool to restore its sharpness; optimize the processing parameters (reduce feed rate, reduce cutting depth, increase cutting speed); strengthen the cooling effect to avoid surface burns; clean the workpiece surface before processing to remove impurities.
5.2 Problem 2: Slot Size Deviation (Too Large or Too Small)
Causes: Incorrect parameter setting, improper tool installation, inaccurate workpiece clamping, or wear of the equipment guide system.
Solutions: Recheck and adjust the processing parameters to ensure that they meet the slot size requirements; re-install the tool and adjust the tool position; re-clamp the workpiece to ensure accurate positioning; calibrate the equipment guide system and adjust the loose components.
5.3 Problem 3: Tool Wear or Damage
Causes: Improper tool selection, excessive cutting speed or feed rate, insufficient cooling, or hard impurities in the workpiece.
Solutions: Select the appropriate tool according to the workpiece material and processing requirements; optimize the processing parameters to reduce tool wear; strengthen the cooling effect to extend tool life; check the workpiece surface and remove hard impurities before processing.
5.4 Problem 4: Equipment Vibration or Abnormal Noise
Causes: Loose equipment components, unbalanced tool rotation, uneven workpiece clamping, or vibration of the installation foundation.
Solutions: Check and tighten the loose components (such as bolts, nuts, and tool holders); balance the tool or replace the damaged tool; re-clamp the workpiece to ensure uniform force; check the installation foundation and adjust the leveling feet to ensure the equipment is stable.
5.5 Problem 5: Equipment Failure (Cannot Start, Feed Jam)
Causes: Power supply failure, electrical system fault, blockage of the feed system, or excessive lubrication oil.
Solutions: Check the power supply and electrical system to eliminate short circuits and other faults; clean the feed system to remove blockages; check the lubrication oil amount and replace the lubrication oil if necessary.
