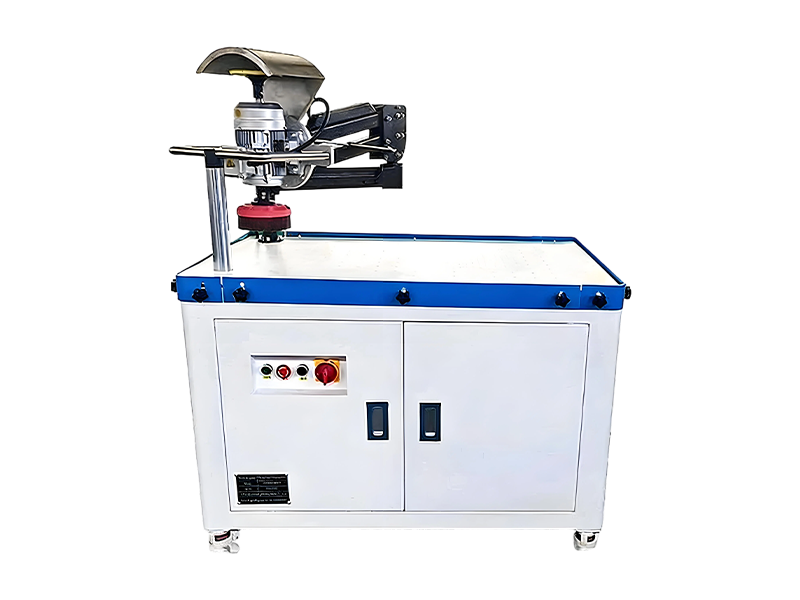

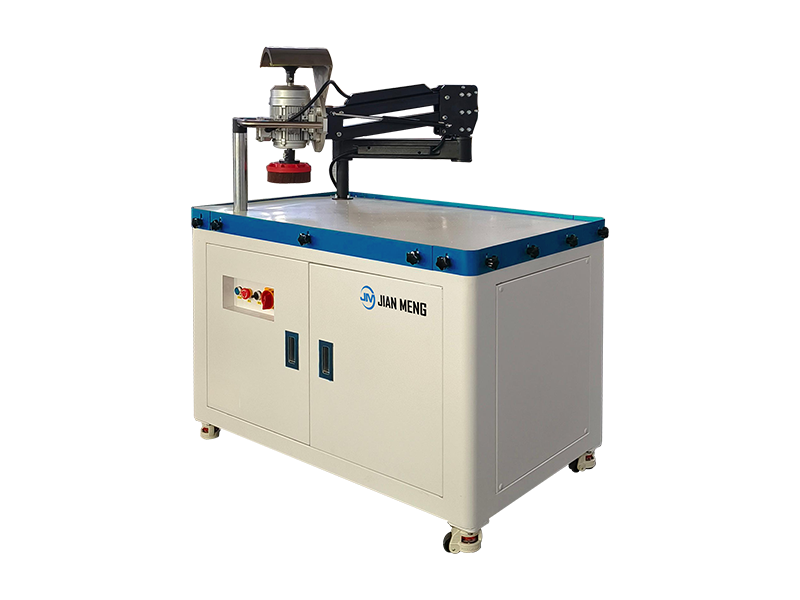

Manual XDP-1308D is a metal manual deburring machine used for deburring, rounding, polishing, etc. on metal surfaces.

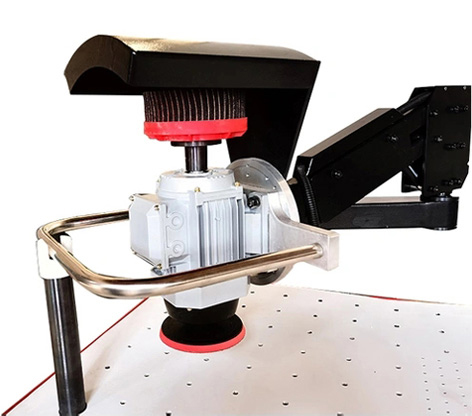

One side of the manual polishing head is equipped with grinding media for heavy-duty polishing, while the other side can be equipped with brush heads for deburring, rounding, and surface treatment. If necessary, a mirror polishing effect can also be created. The 180 degree rotation axis makes it easy to replace different consumables.
The manual polishing machine adopts ergonomic design to optimize operating conditions.

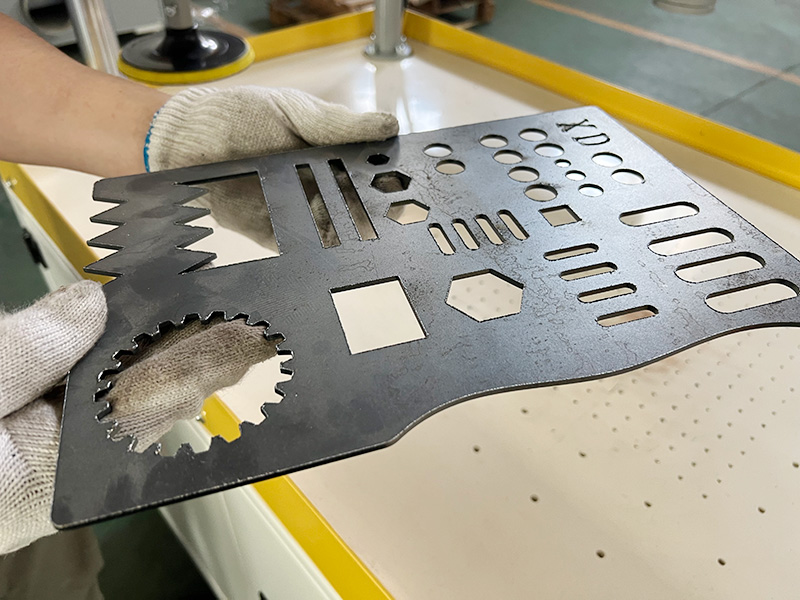

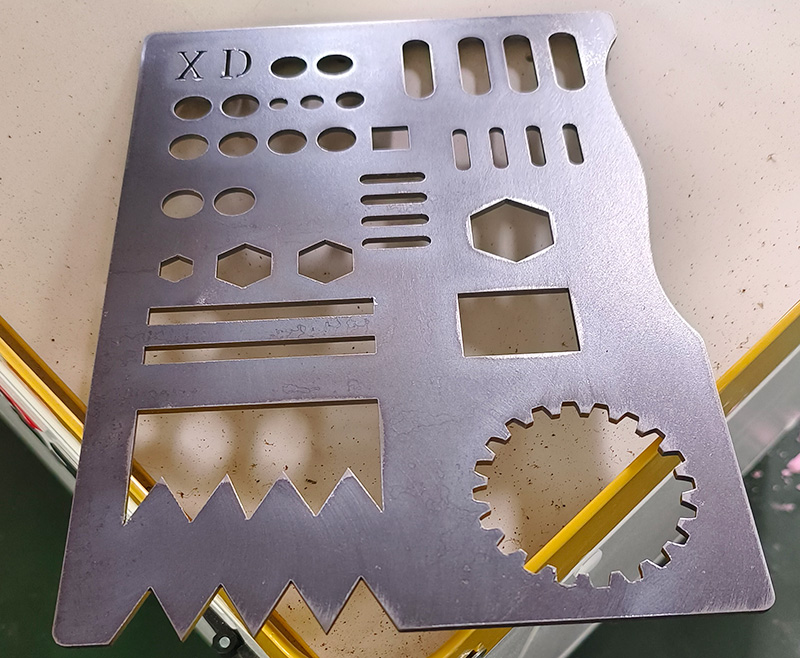

The special pad for the machine table has a high damping anti slip surface, which can fix the workpiece during deburring and surface drawing. Fix small workpieces in place by integrating a vacuum adsorption platform. We can remove burrs generated during stamping, shearing, laser cutting, plasma cutting and other processes in all directions, achieving a small R-arc effect on all edges and holes of the workpiece. The machining process is safe and reliable, allowing the workpiece to achieve perfect results.
Device Configuration:
1. Movable cantilever, dual position adjustment, with weight compensation
2. Sand disc is used to remove rough burrs
3. Small workpiece high damping anti slip pad
4. Variable frequency control drive
5. 1300 x 800 mm worktable
6. Weighing approximately 270 kg
7. Vacuum adsorption platform
8. The side panel can be adjusted according to the height of the workpiece to protect personal safety and process large workpieces
Technical specifications of Deburring & Finishing Machines
| Item | Value |
| Number of grinding heads | 1 |
| Grinding head type | Disc/Cup shaped |
| Workbench | 1300*800mm |
| Vacuum area | 300*250mm |
| 1.1kW grinding tool drive motor | 380V/3P |
| Vacuum adsorption motor | 2.2KW |
| Negative pressure | 5000pa |
| Diameter grinding disc | 150mm |
| The grinding head can rotate 180 degrees, with variable frequency speed regulation | 100-2900r/min |
| Maximum Machinable Workpiece Thickness | 60mm |
| Minimum processing size | ≥50×50mm |
| Workbench height | 900mm |
| Equipment noise | ≤85dB |
| 350kg | |
| Chamfer range | R0.1~0.3 |
| Processing and grinding consumables | Sand discs of various particle sizes and grinding sand disc rollers |

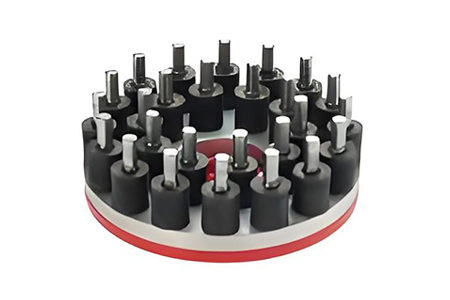

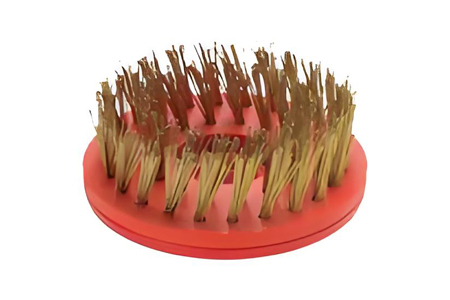

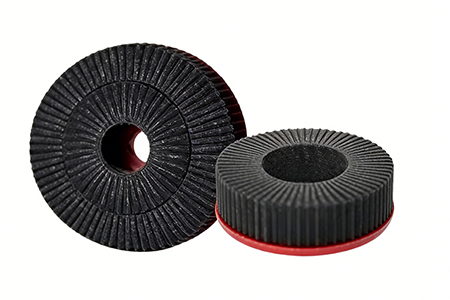

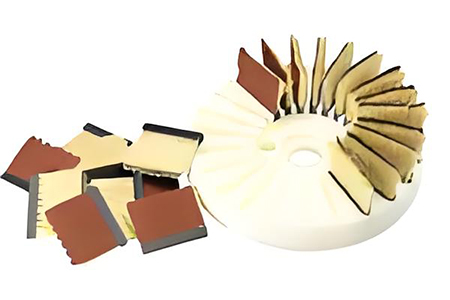

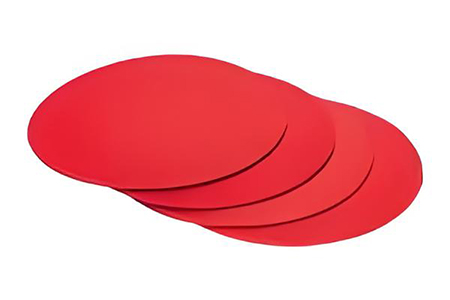

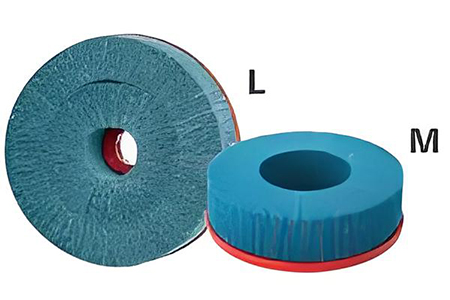

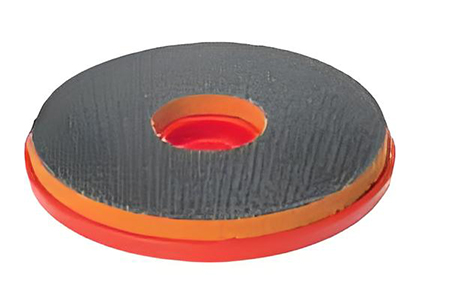

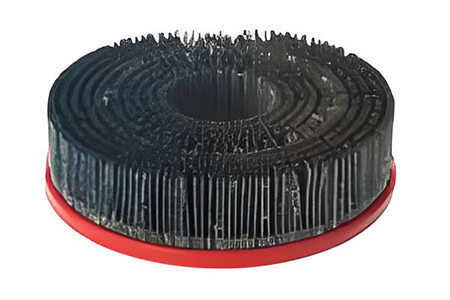

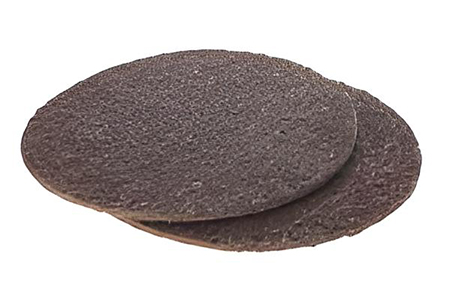

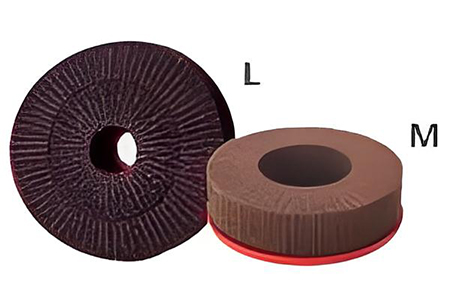

Optional tools for manual deburring
Hard for the removal ofhard burrs. Medium for the removal of other (various) burrs.
Pregrinding, light deburring and finish grinding.
Pregrinding, primary burr removal.
Primary and secondary burrs + strong edge roundings.
Deburring and edge rounding of various metals.
Deburring and strong edge rounding of stainless steel with bigger radius.
Edge rounding and fine surface pattern for aluminium and plastic.
Deburring and edge rounding of (galvanized) thin plates and parts.
Removal of oxide layers.
Deslagging residues.
