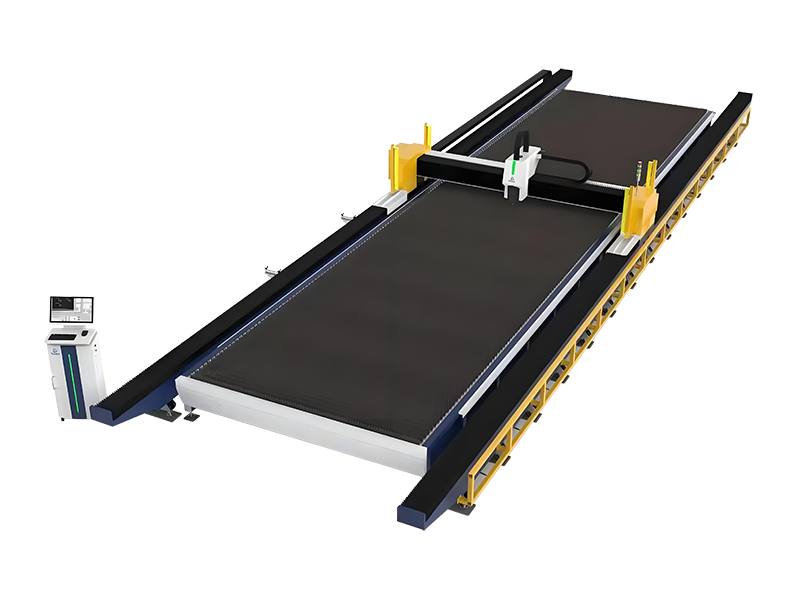

Gantry Large Format Fiber Laser Cutting Machine

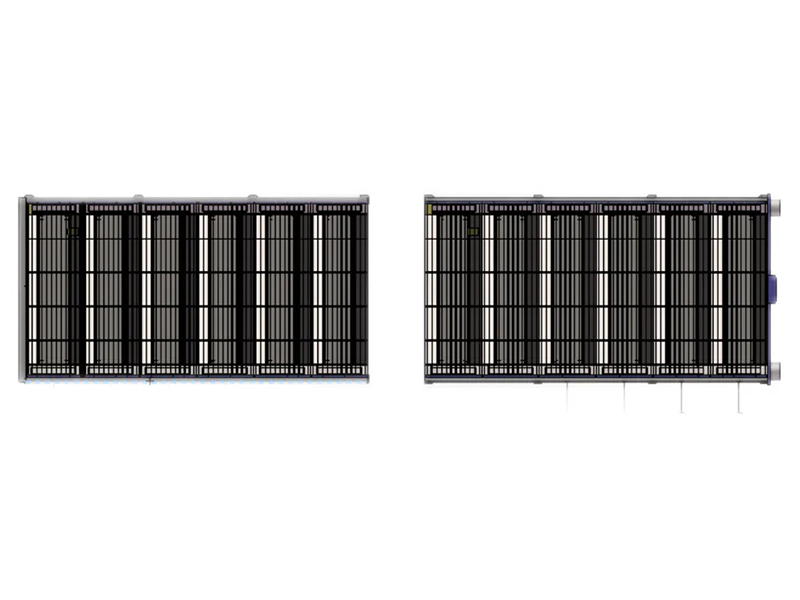

Machine Bed

The heavy-duty welded bed is the strongest frame in China's CNC machine tool industry. The plate welded bed has undergone an aging cycle or heat treatment process to completely eliminate internal stress. It has high mechanical strength, high precision, strong stability, high temperature resistance, long-term operation of the bed without deformation, and a service life of up to 25 years.

Beam

The beam body adopts an integrated tensile beam, and the aviation aluminum lightweight gantry design realizes lightness and at the same time meets the rigidity requirements. The high-speed running inertia is small, the speed and acceleration can be switched freely, the action response is sensitive, and the control is precise.

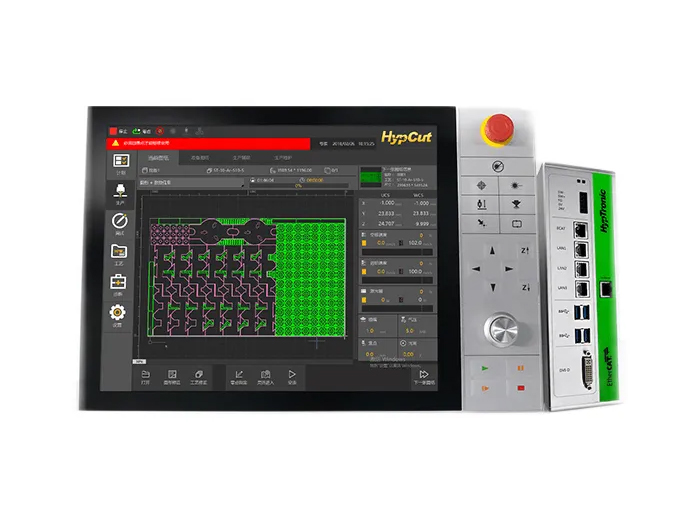

Control System

Cypcut cutting software boasts easy installation and straightforward debugging, coupled with outstanding performance. It also supports power-based speed adjustment, providing additional flexibility to its users.

Additionally, the software allows for separate import linear speed settings and boasts a robust cutting process database.

Laser Source

Our fiber laser source lineup comprises renowned brands such as Raycus (China), n-Light (USA),and IPG (Germany), with power capacities ranging from 1000W to 20,000W.

We offer a fiber laser source with a constant beam parameter product (BPP) across its full power range, ensuring good beam quality with a small spot size.

Transmission Components

It adopts ground-grade gears and racks and linear guides from top international brands to ensure the stability and precision of airport movement.

Air Cooler

The purpose of this is to lower the overall temperature within the electrical enclosure and ensure its smooth and stable operation. This is achieved by facilitating the dissipation of heat generated by the electrical components.
