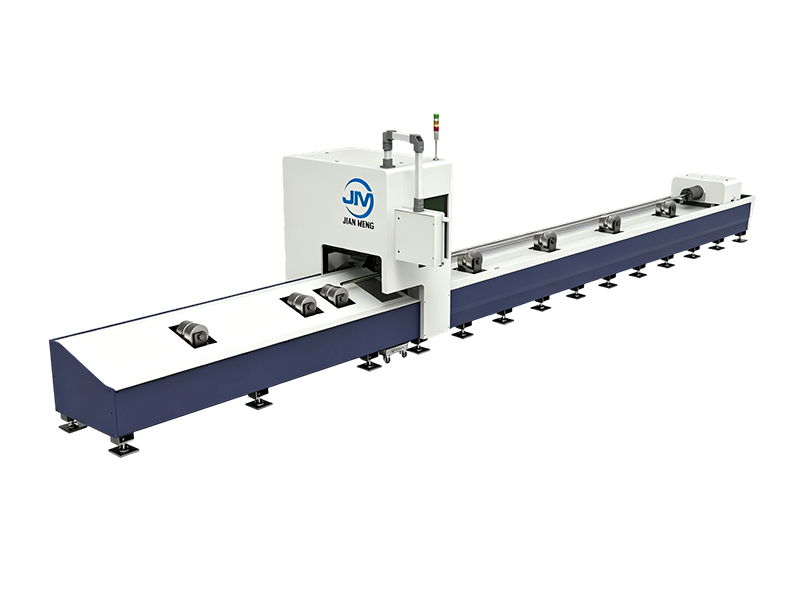

Fiber Laser Tube Cutting Machine

Product details

Affordable Metal Tube Laser Cutting Machine passed CE certifications.

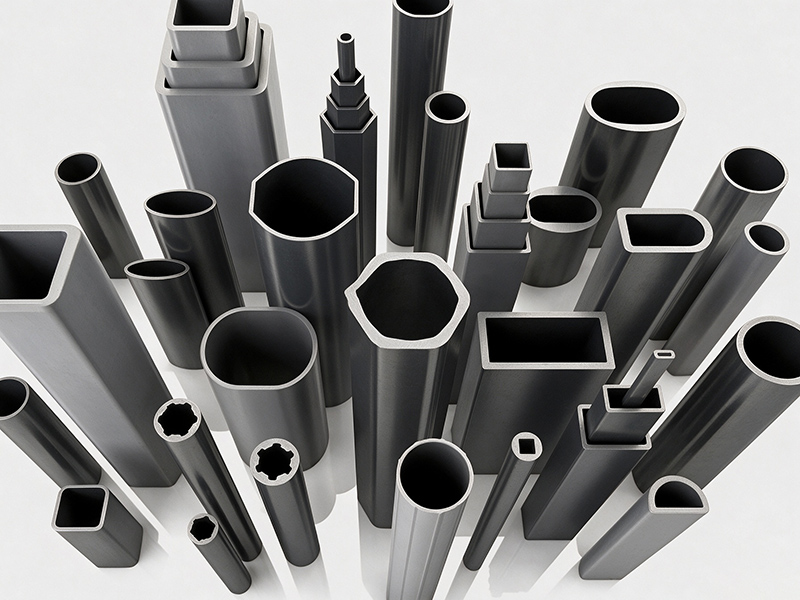

Tubes and profiles are used everywhere - from mechanical engineering and system construction all the way to the furniture industry. Lasers open up new design possibilities, so more and more designers are taking advantage of the benefits of laser cutting of tubes and profiles, thus significantly increasing demand. Discover the full range of solutions in the field of laser tube cutting and find out more about JM CNC Fiber Laser Tube Cutting Machines.
JIANMENG Fiber Laser Tube Cutting Machine, also known as metal tube laser cutters, is equipped with a fiber laser device, providing laser power ranging from 1500W to 8000W.

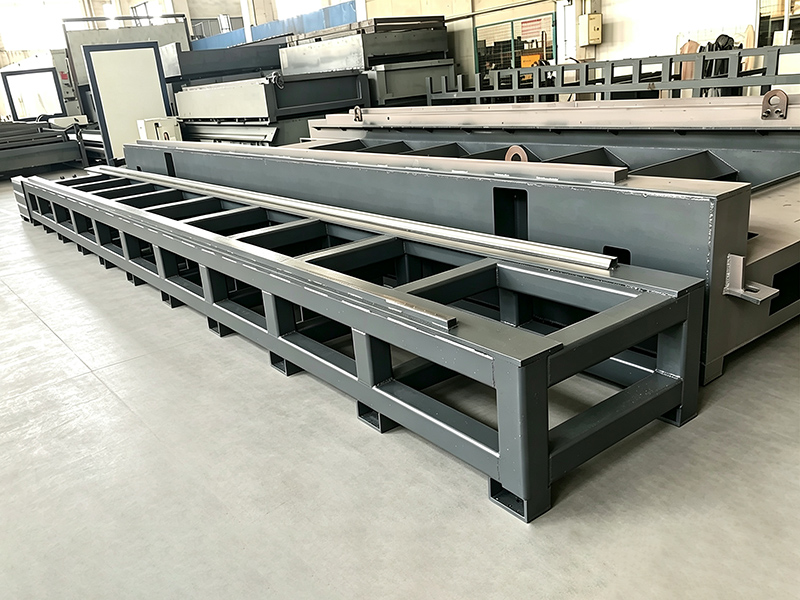

Machine Bed

The bed adopts a welded structure, which undergoes rough machining after annealing, followed by vibration aging treatment, and then finished. This process completely eliminates welding and processing stresses, providing excellent rigidity, high precision, and ensuring long-term deformation-free use.

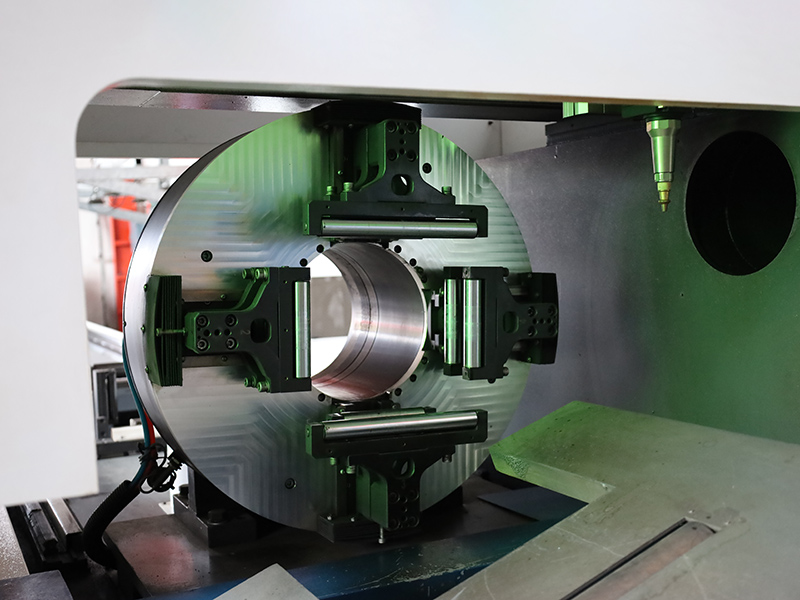

Main Chuck

Both the main chuck and the auxiliary chucks are self-centering, allowing for direct clamping without the need for adjustments. This feature makes workpiece positioning easier and significantly reduces the difficulty of loading and debugging for workers. The result is a smooth cutting surface.

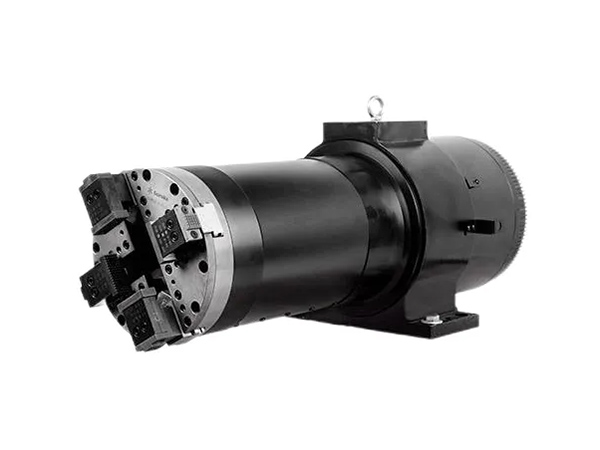

Auxiliary Chuck

The pneumatic chuck provides full-stroke clamping, eliminating the need to change jaws. The bearing seat integrates the reducer and motor, offering high strength and strong stability. Built-in gears ensure good dust resistance, high grinding precision, and low noise during operation.

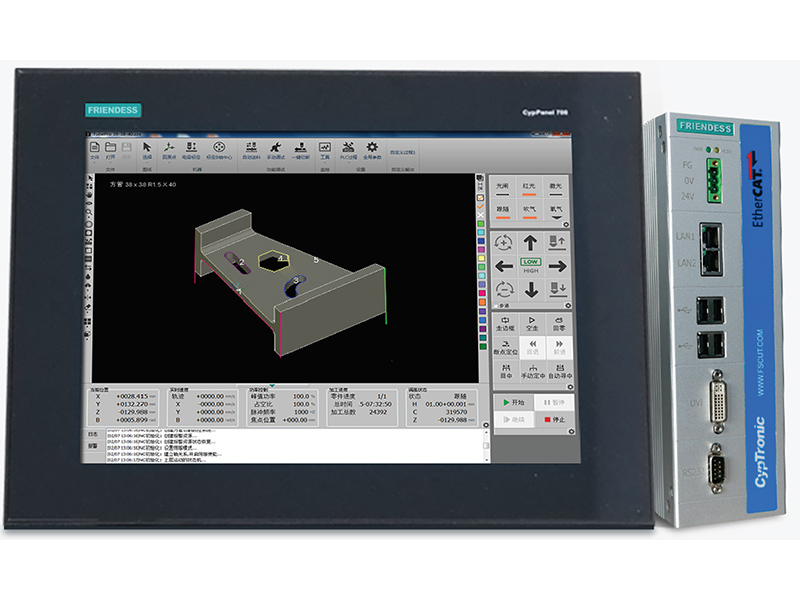

Control System

The machine uses a laser cutting machine-specific bus CNC system based on the Windows operating system. This system integrates various laser cutting control modules, offering powerful functions with easy operation.

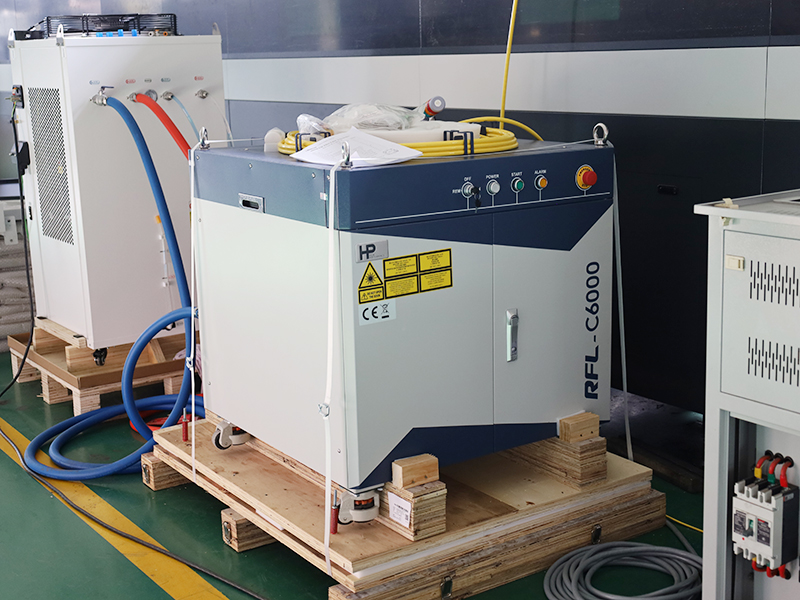

Laser Source

Our fiber laser source lineup comprises renowned brands such as Raycus (China), n-Light (USA),and IPG (Germany), with power capacities ranging from 1000W to 20,000W.

We offer a fiber laser source with a constant beam parameter product (BPP) across its full power range, ensuring good beam quality with a small spot size.

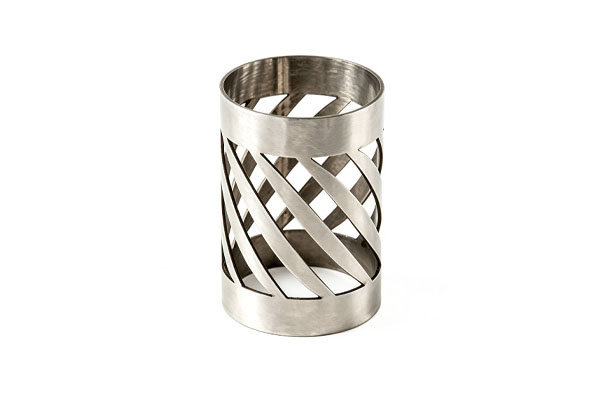

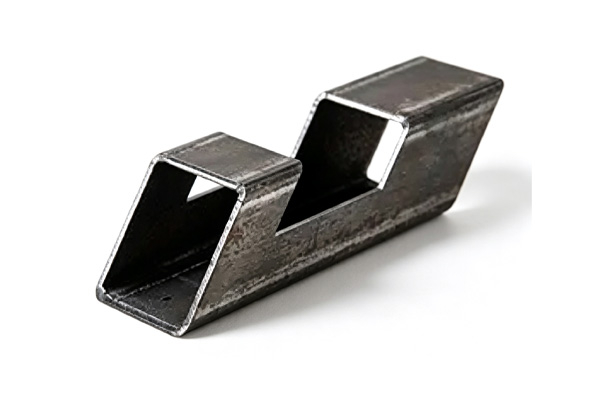

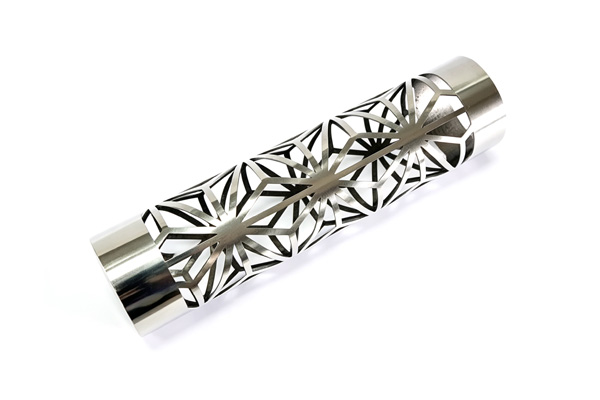

Product effect

Technical specifications of fiber laser tube cutting machine

Item Value
Tube cutting length 3000-12000 mm
Tube size φ15-450 mm
15*15-450*450 mm
Positioning accuracy ±0.03 mm
Positioning speed 90 m/min
Laser power 1500-8000 W
Repeated positioning accuracy ±0.01 mm
Chuck quantity 2 or 3
Positioning acceleration 1.0 g
