Three-Dimensional Five-Axis Laser Cutting Machine

Product details

The 3D 5-Axis Laser Cutting Machine can not only easily solve the three-dimensional cutting problems of various metal workpieces, but also can be used for flat plate cutting. The operation is simple. High cost performance and can be produced in batches.
The three-dimensional five-axis laser cutting intelligent equipment is equipped with a full-function high-reliability CNC system, an independently developed high-performance lightweight cutting head and an independently developed highly convenient online modification software. It has a variety of specifications and diverse mechanical structures and a powerful expert laser process database.

Round pipe

Channel

Wide flange

Square/tube

Angle

Other shapes

The 3D five-axis laser cutting machine is designed for customers in the field of machining stations, mould and die prototyping, and automotive parts, to solve the 3D cutting needs of various metal workpieces. It has a cantilevered structure for good openness, high stability, compactness and simple operation and maintenance, and is suitable for prototyping and mass production.

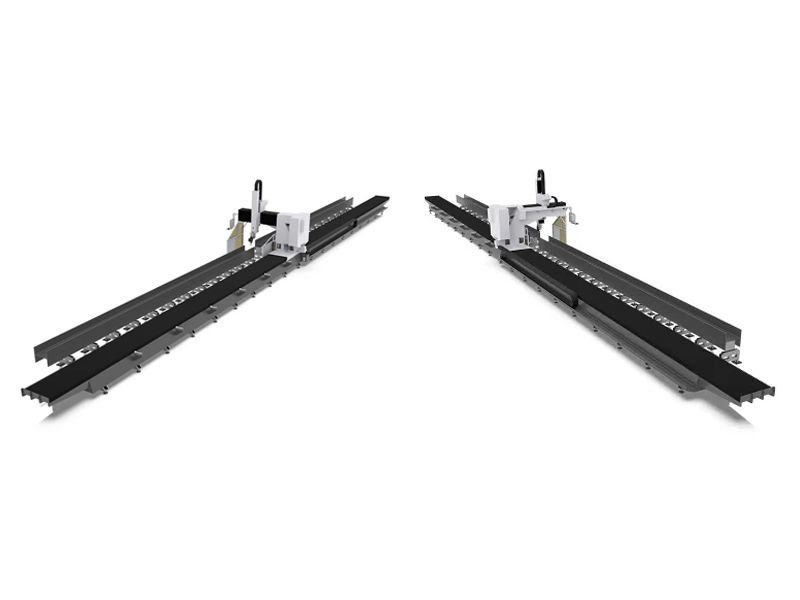

The processing format can be customized, with four specifications of 3m×1.5m, 4m×2m, 4m×2.5m, and 6m×2m. Rotary, translational or fixed worktables can be selected according to customer needs.
3D Five-axis Laser Cutting Machine is suitable for automobiles, aerospace, molds, home appliances, engineering machinery, ships, hardware, decoration, medical equipment, fitness equipment and other industries.

Machine Bed

The bed adopts a welded structure, which undergoes rough machining after annealing, followed by vibration aging treatment, and then finished. This process completely eliminates welding and processing stresses, providing excellent rigidity, high precision, and ensuring long-term deformation-free use.

Cutting Head

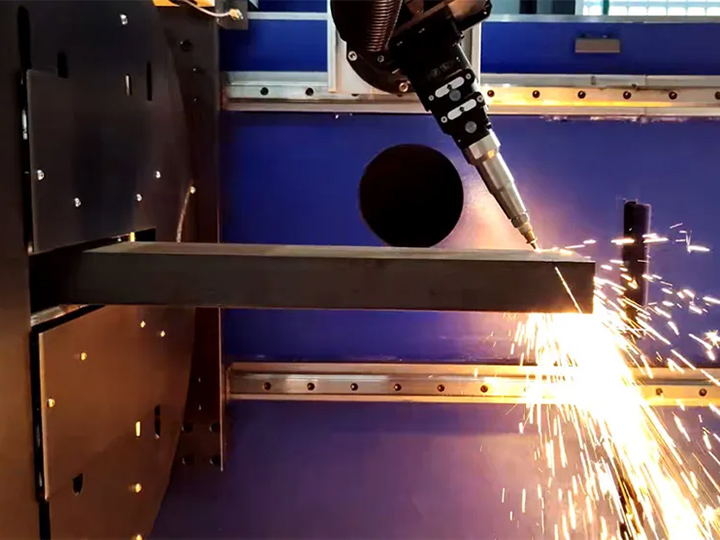

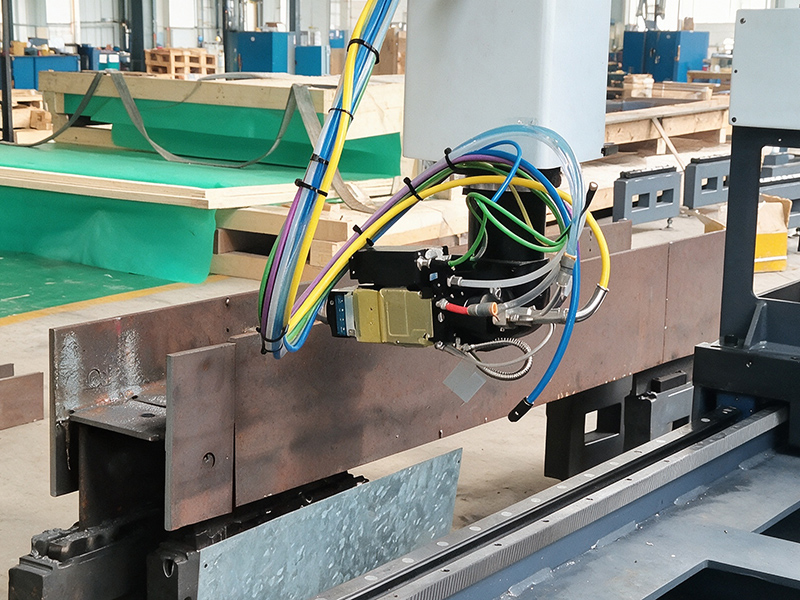

The three-dimensional head realizes nx360° infinite rotation and is highly efficient. In addition to completing three-dimensional cutting of workpieces, it can also be used for flat plate cutting. At the same time, the welding module can be switched on this platform and expanded into a laser welding platform to achieve multiple functions in one machine. 24-hour uninterrupted stable production, suitable for mass production

The Real 3D

In traditional articulated manipulators, the joint axes are connected to each other and are arranged sequentially from the fixed base of the manipulator to the processing head. Accuracy errors will accumulate, resulting in a geometric increase in errors in the final processed product. The axes of the three-dimensional five-axis processing machine are independent of each other, ensuring long-term high-speed and high-stable cutting.

Control System

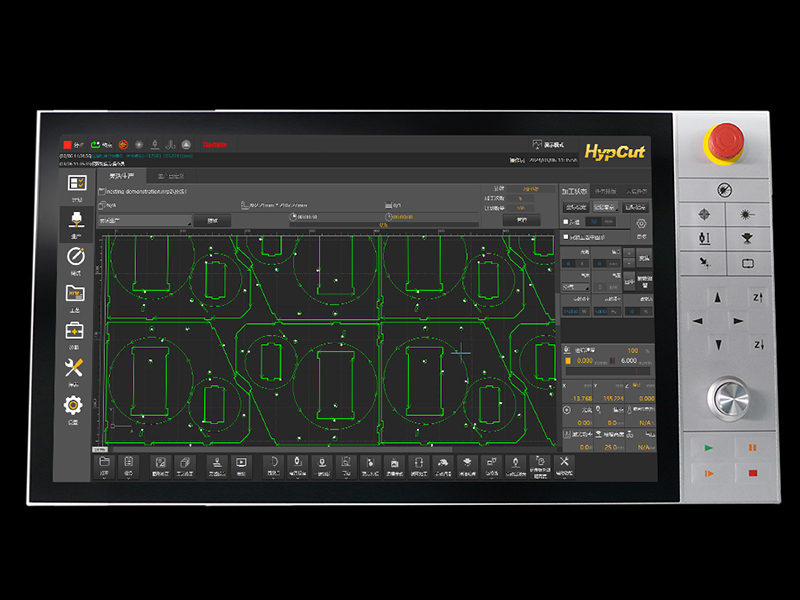

FSCUT CNC system, a powerful customized CAD/CAM offline programming software with precise simulation, intelligent path, intelligent puncture and other functions for fast programming. High-performance power drive, combined with high-precision imported transmission parts, the machine tool positioning accuracy is ±0.04mm.

Laser Source

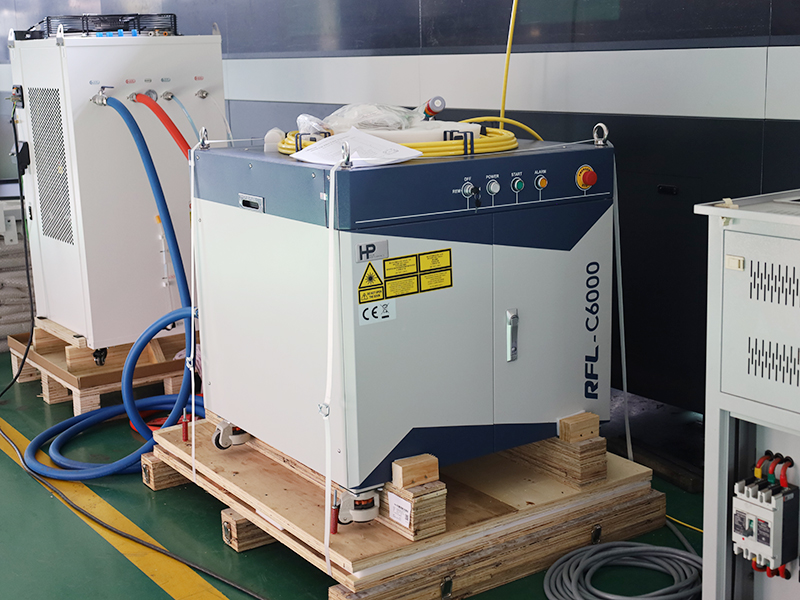

Our fiber laser source lineup comprises renowned brands such as Raycus (China), n-Light (USA),and IPG (Germany), with power capacities ranging from 1000W to 20,000W.

We offer a fiber laser source with a constant beam parameter product (BPP) across its full power range, ensuring good beam quality with a small spot size.

Technical specifications of three-dimensional five-axis laser cutting machine

Item	Value
Tube cutting length	3000-12000 mm
Tube size	100100-1000600 mm
Positioning accuracy	±0.03 mm
Positioning speed	60 m/min
Laser power	12000-30000 W
Repeated positioning accuracy	±0.01 mm
