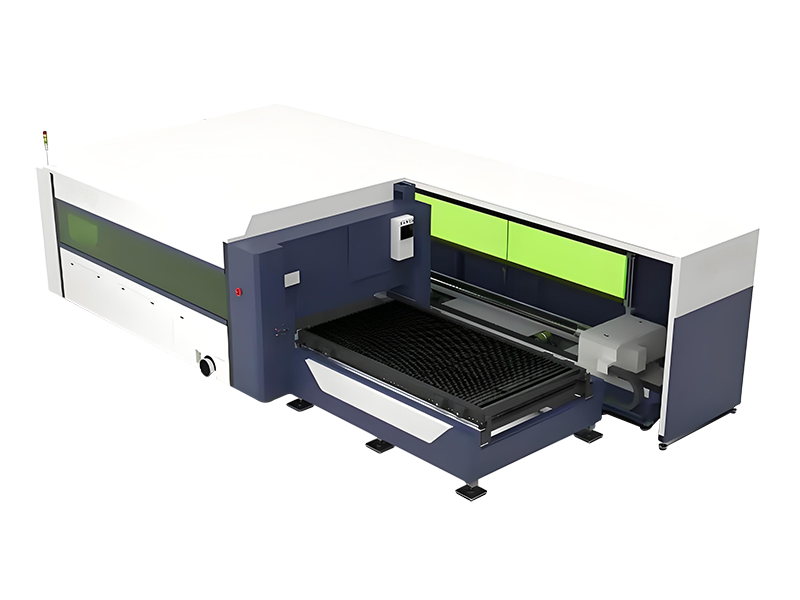

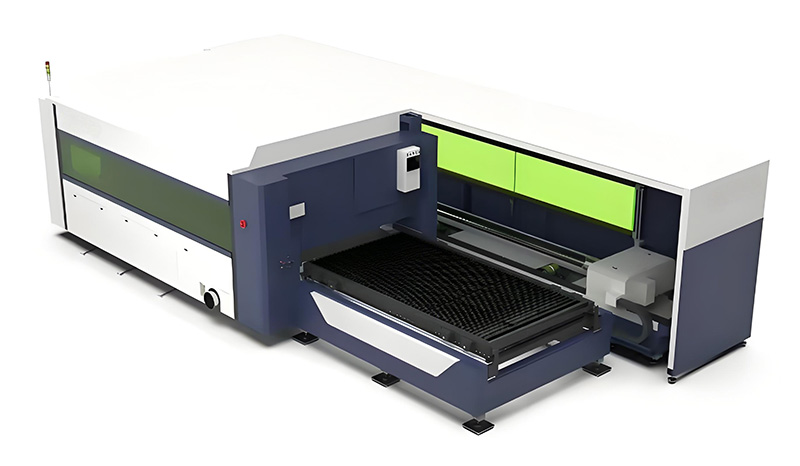

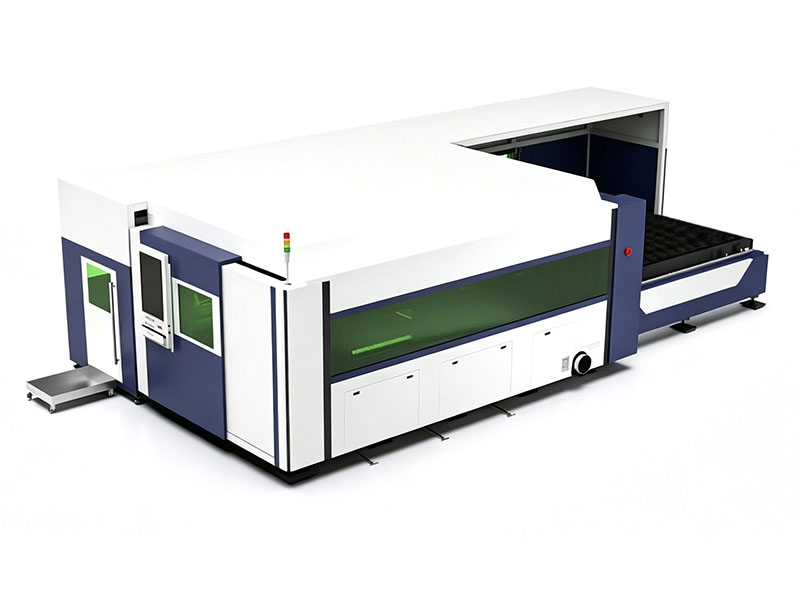

Double Exchange Platforms Sheet & Tube Laser Cutting Machine

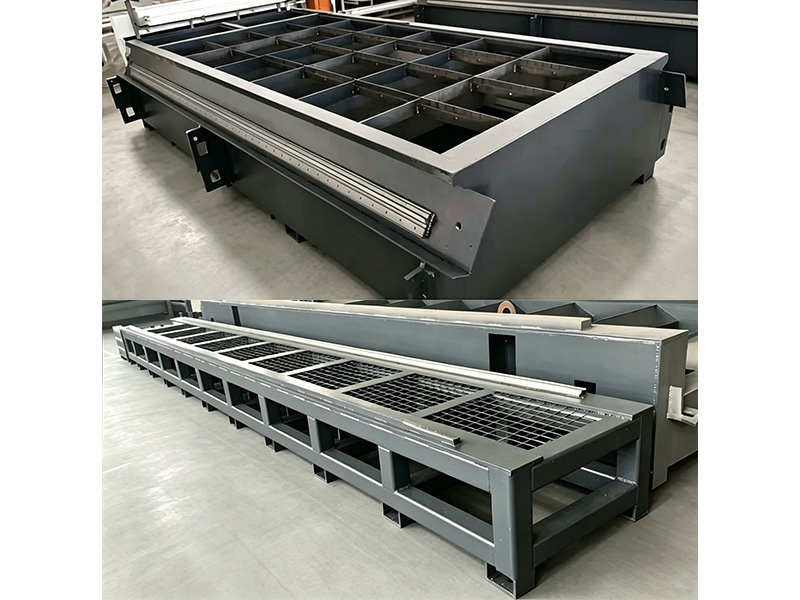

Machine Bed

The heavy-duty welded bed is the strongest frame in China's CNC machine tool industry. The plate welded bed has undergone an aging cycle or heat treatment process to completely eliminate internal stress. It has high mechanical strength, high precision, strong stability, high temperature resistance, long-term operation of the bed without deformation, and a service life of up to 25 years.

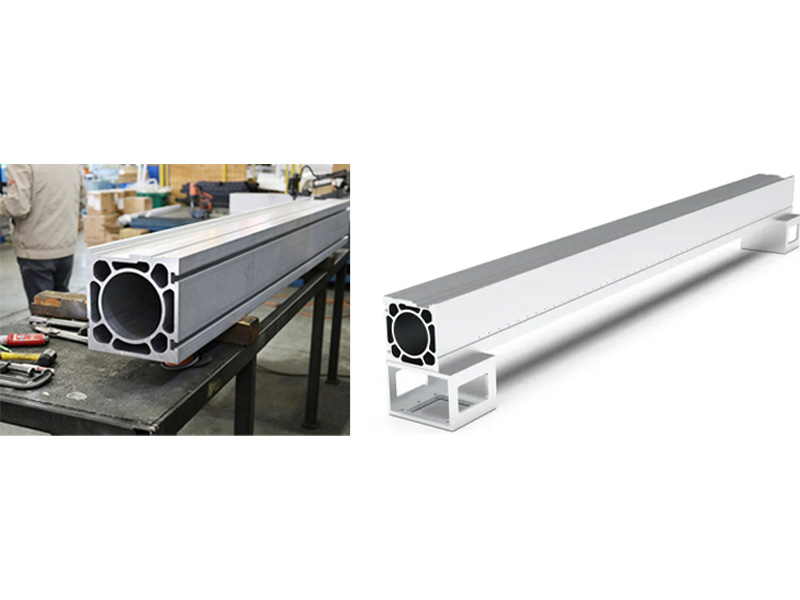

Beam

The beam body adopts an integrated tensile beam, and the aviation aluminum lightweight gantry design realizes lightness and at the same time meets the rigidity requirements. The high-speed running inertia is small, the speed and acceleration can be switched freely, the action response is sensitive, and the control is precise.

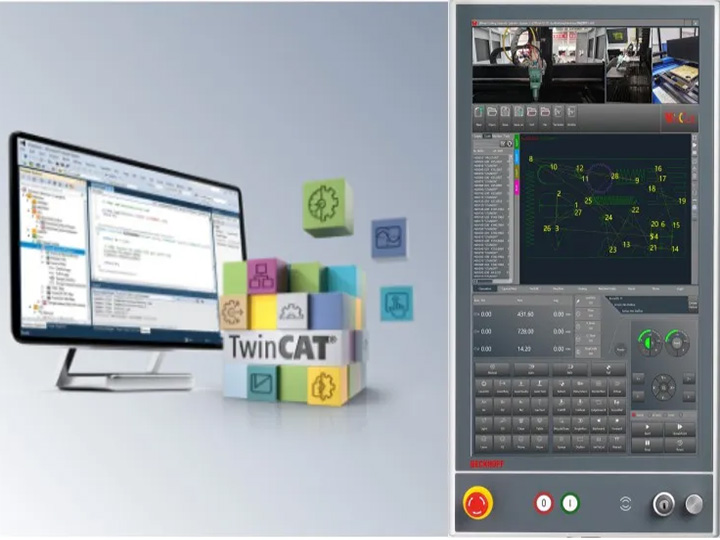

Control System

Professional intelligent control system, with automatic nesting function, stable performance, fast operation, supports a variety of common file formats, DXF, PLT.... Simple and fast operating system, one-key import of multiple types of cutting graphics, accurate cutting instructions , so that the user experience effect is better.

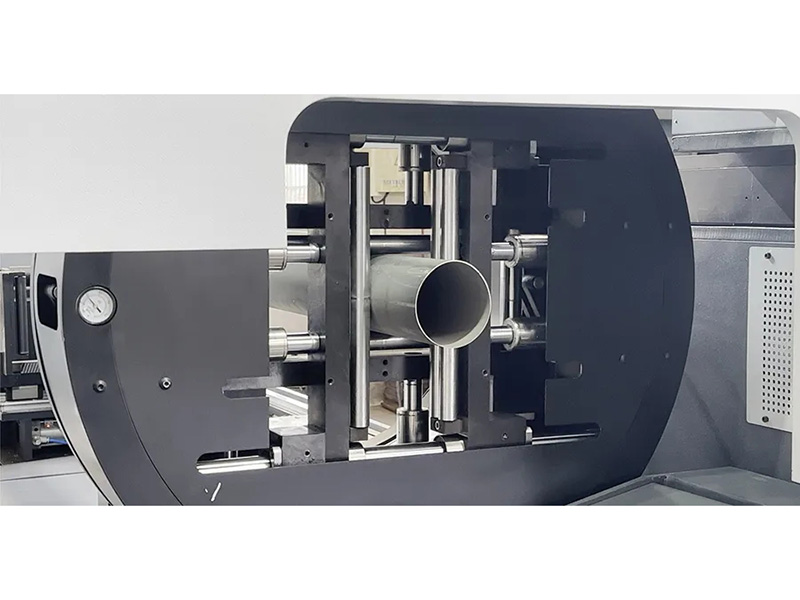

Double Fully-automatic Pneumatic Chucks

* One-click chuck opening and automatic centering will reduce the waiting time for loading and unloading.

* Pneumatic clamping with no looseness or slip.

* The concave support frame can avoid the sagging deformation of the pipe, improve the cutting accuracy, and prolong the service life of the chuck.

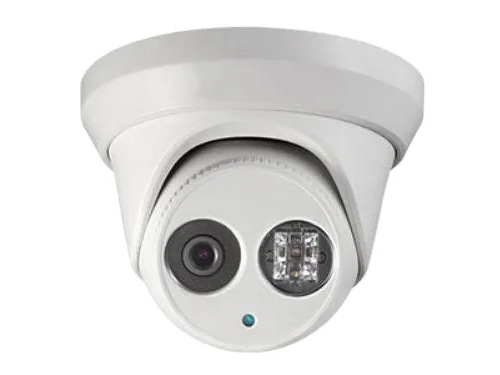

Intelligent monitoring system

High-definition intelligent monitoring system, the cutting process can be controlled, intelligent security protection, 100% safe even if no one is on duty, and the machine travel is automatically protected. It can detect the safety range of the cutting parts by itself, provide rapid feedback, and the safety guarantee system is very high.

Laser Source

Our fiber laser source lineup comprises renowned brands such as Raycus (China), n-Light (USA),and IPG (Germany), with power capacities ranging from 1000W to 20,000W.

We offer a fiber laser source with a constant beam parameter product (BPP) across its full power range, ensuring good beam quality with a small spot size.
